Brand Name : | NEWLEAD |
Model Number : | 13DT/11DT/9DT |
Certification : | CE |
Price : | Negotiation |
Supply Ability : | 200 pcs in one month |
Delivery Time : | 30 days |

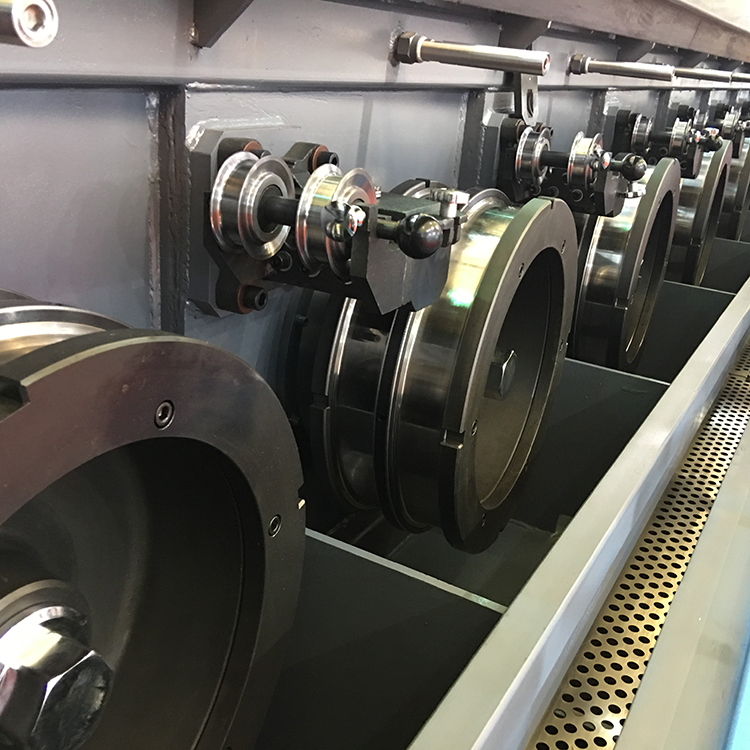

Drawing dies for Rod breakdown machine made of Artificial diamond
and Natural diamond
Advantages of this safe investment choice
Design
© optimized wire cooling/lubrication (fully-immersed drawing basin)
© helically geared precision gearing for extremely smooth operation
and uniform load transmission
© vibration-damping black cast iron housing for long service life
© highly reliable separation of drawing emulsion and gear oil via
mechanical seal(long service intervals)
© user-friendly design
Improve in quality:
© high surface quality of the wires due to the optimized wire
path(2°C inclination of the gearing/drawing capstans)
Improve in productivity:
© reduced downtime when changing the machine setup for different
dimensions via multi-motor drive technology(quick drawing die
change system)
© reduced downtime due to touchscreen based user guidance and fault
display
machine type | 8DT | 9DT | 11DT | 13DT | |||||||
inlet diameter (mm) | φ8 | φ8 | φ8 | φ8 | |||||||
outlet diameter (mm) | φ2.6-φ4.0 | φ2.2-φ4.0 | 1.60-4.0 | φ1.2-φ4.5 | |||||||
transmission type | transmit by high precision | ||||||||||
drawing line speed(MPM) | 780 | 780 | 1500 | 1500 | |||||||
lubrication system of wire drawing | all immerse type | ||||||||||
capstan dia.(max.) (mm) | φ450 | φ450 | φ450 | φ450 | |||||||
fix speed capstan dia.(mm) | φ450 | φ450 | φ450 | φ450 | |||||||
main motor (KW) | 160(DC) | 160(DC) | 250(DC) | 280 (DC) | |||||||
drawing dies no./max | 8 | 9 | 11 | 13 | |||||||
annealing medthod | DC three section spooler | ||||||||||
max.anneaing voltage (DC) | 55V | 55V | 55V | 60V | |||||||
max.anneaing current (DC) | 4000A | 4000A | 4000A | 5000A | |||||||
Drive method | D.C. drive |
![]() |
