Intelligent voltage tester for Vertical Enameling machine GB/T4074.5-2008/IEC60851-4; Inspection standard: JB/T4279.11-2008
Performance Characteristics of Product
◆Executive standard: GB/T4074.5-2008/IEC60851-4; Inspection
standard: JB/T4279.11-2008
◆Used to test the breakdown voltage performance under room
temperature of enameled round and flat wires with nominal conductor
diameter of 0.018mm and above;
◆Three voltage rise speeds are available: 20V/s, 100V/s and 500V/s,
with error being ±5%;
◆Three test methods can be adopted: round bar method, twist pair
method and ball method;
◆Applicable to withstand voltage test for electrotechnical
products;
◆Application of SCM control allows for fast operation, strong
anti-interference capacity and high intelligence;
◆Clamp a group of test samples (5 for each) once, available to
complete breakdown or withstand voltage test for any of sample one
by one or individually; breakdown voltage and withstand voltage
time would be automatically saved for future enquiry; all
operations would be automatically completed;
◆Capable of conducting high temperature breakdown voltage test in
combination with RDS-50 thermal-state voltage tester;
◆LED would automatically display test results and automatically
return;
◆During sample breakdown, breakdown voltage indication value would
be automatically locked, free from flashing, and the test result is
distinct and relatively clear;
◆Equipped with test fixture for round rod method and twist pair
method as well as the test weight for round rod method;
◆Equipped with ball method test device (steel balls are prepared by
user);
◆Test box door is provided with safety interlocking device,
compliant with relevant regulations on high voltage testing
equipment.
◆The application of software facilitates instrument’s on-line
operation and control as well as data analysis and comparison;
◆All test data can be automatically transmitted to upper computer,
and be saved and analyzed by DMS-15 quality inspection data
management system for enameled winding wire.
Major Technical Parameters
Breakdown action current | 5±0.5mA |
Maximum Test voltage | ≥15000V |
Indication value error of test voltage | <2% |
Withstand voltage time | Ranging 1s~19999s |
Diameter of round bar pole | 25±0.5mm |
Rated capacity of test transformer | 1000VA |
Input power | AC220V±10% 50Hz |
Consumed power | ≤1200W |
Working environment | Temperature: 0-40℃;Relative humidity:≤85% |
Overall dimensions | L×W×H 550×650×1700mm |
Weight | 125kg |
●Preparation of weights:
A set of test weights for round bar method;
●Optional Model:

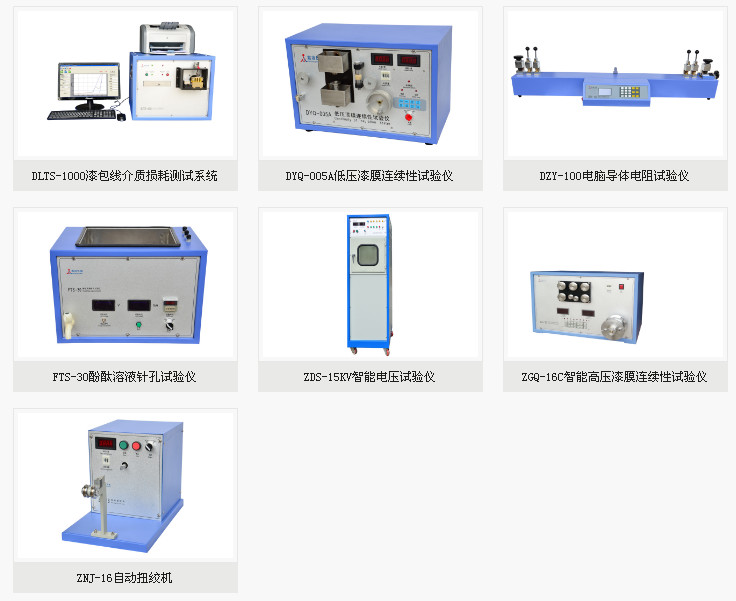

ZDS-50C 15KV intelligent voltage tester
ZDS-50C 20KV intelligent voltage tester
ZDS-50B 20KV automatic voltage tester
ZDS-50B 15KV automatic voltage tester (single-head)
ZDS-50B 20KV automatic voltage tester (single-head);
ZDS-50B insulation material voltage tester;
ZDS-50B saline method voltage tester
ZDS-50B glycerinum method voltage tester
ZNJ-16 auto strander
![]() |
