Diameter laser measurement laser diameter gauge for cable coiling
machine diameter controller
1 General
Type DDM-3020 is the third generation dynamic diameter gauge for
measurement and control developed by Shanghai Online. Employing the
measuring principle of high speed pulsed IR ray combined with high
precision CCD sensor and aided by high speed digital image process
technique, this generation gauge features high measurement
accuracy, high stability, easy application and maintenance and

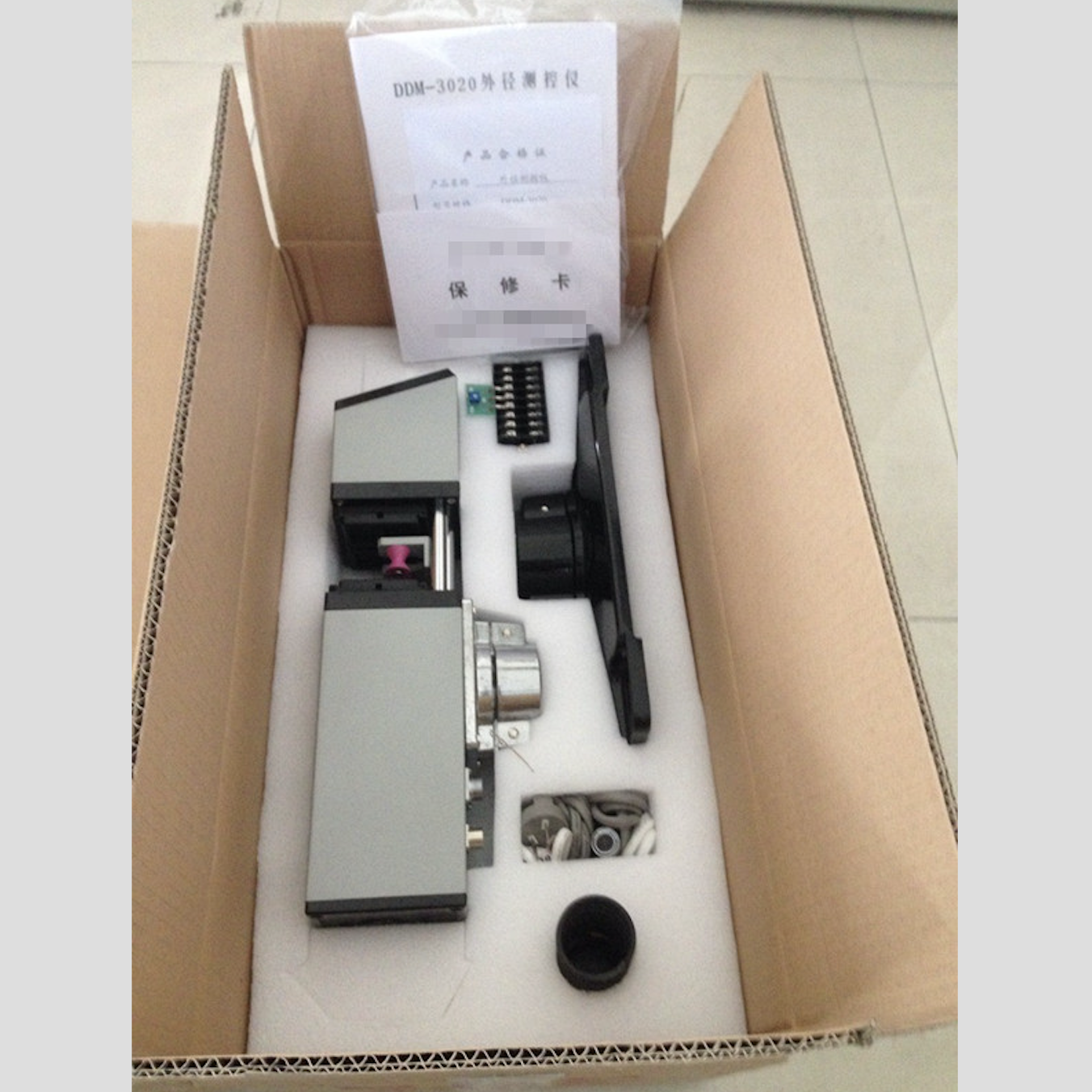

extra-long service life. A complete set of the Gauge includes a
DDM-3020 diameter measuring head, measuring head support and a
separate DSP-3A Monitor.
DDM-3020 Dynamic Diameter Gauge is used mainly for online diameter
measurement and control for electric wire and cable, optic fiber
cable, tubes and wires. Compared with the previous generation
products, the third generation gauge is characterized by
☆ All digital image process technique and dedicated ultra-large
scale integrated circuit, which ensure high stability, compact size
and low power consumption.
☆ Hardware acceleration, which provides high measuring speed up to
1800 measurements/s and makes it possible to use the Gauge as a
lump & neck detector.
☆ RS-485 communication interface,which makes the Gauge to be
connected easily to an industry computer, PLC and touch panel.
☆ Advanced feedback control system, which improves the control
effect.
1.1 Service conditions and packing size
Power: 100～240VAC, 50～60Hz;
Operating temperatures: 0～45 ℃
Atmospheric humidity: ≤ 90%(free of condense water)
Ambient requirement: The surrounding air shall free of corrosive
gas, oil, steam and heavy dust
Packing size: 615 mm×330 mm×280 mm(L×W×H)
Weight of the complete machine: 11 kg
1.2 Principal technical data
Nominal measuring range: 20 mm
Recommended measuring range: 0.1～16 mm
Measuring accuracy: ±(0.002 + 0.02% gauge readout)
Measuring speed: 1800 measurements/s
Power consumption: < 10W
Communication interface: RS-485
Centre height(including support): 850～1100 mm
Dimensions(excluding support): 100 mm×100 mm×410 mm
