| Brand Name : | RBO |
| Model Number : | 24WDS |
| Certification : | CE |
| Price : | Negotiation | 1 Unit/Units wire drawing machine (Min. Order) |
| Supply Ability : | 60 sets in 90 days |
| Delivery Time : | 60 days |
24WDS fine wire drawing machine single-wire drawing lines and system
1: wire drawing in a single, compact
unit
2: ergonomic and user-friendly machine design,
with easy maintenance
3: left and right-hand versions for Non Ferrous
4: metal wires with the highest quality
5: requirements
6: single wire path with no crossover
effective single-wire drying
| machine type | 24WDS | |
| inlet diameter(mm) | 0.5-1.0 | |
| outlet diameter(mm) | 0.08-0.25 | |
| drawing line speed(MPM) | 2500 | |
| drawing dies No./Max | 24 | |
| slip ratio of m/c | 13% | |
| fix speed capstan slip ratio | 8% | |
| capstan | ceramic coating | |
| capstan dia.(max.)(mm) | φ242 | |
| fix speed capstan dia.(mm) | φ207 | |
| frame | ironed cast | |
| main motor | 11KW three phase inductor motor | |
| spooler motor | 3.7KW three phase inductor motor | |
| revise system | Dual inverter control | |
| inverter control | Dual inverter control | |
| transmission type | flat belt | |
| payoff method | over head | |
| traversing unit | flat belt + timing motor | |
| tension control | weightbalance by swing arm | |
| lubrication system of wire drawing | ||
| suitable diameter of spool (mm) | φ300 | |
| capacity for wire receiving(kg) | 50-60 | |
| bobbin loading & unloading type | shaft type | |
| power source | 380V/220/415/480 | |
| brake | pneumatic brake | |
| machine dimension | 2050L×1600W×1900H | |
| machine weight | 2000 | |

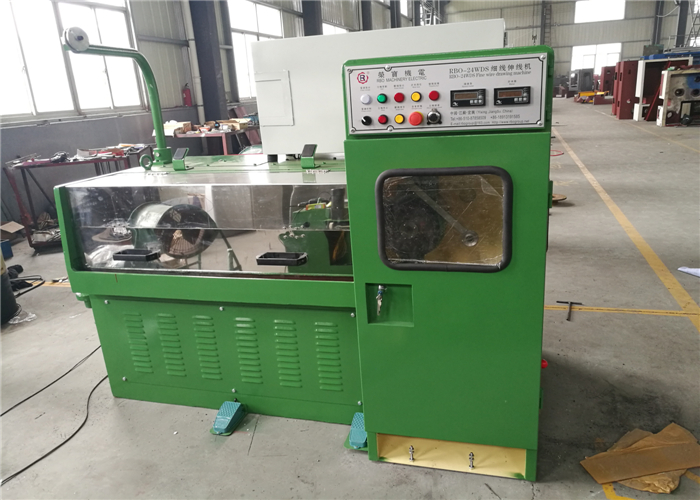

Product Picture

|
