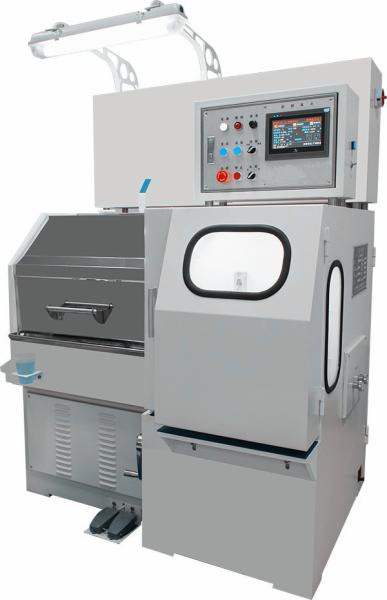

    Precious Metal Micro Super Fine Wire Drawing Machine 60 / 12D For 0.012-0.025mm

    Ask Lasest Price
    Brand Name : NEWLEAD
    Model Number : 60/12D
    Certification : ISO CE
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C
    Supply Ability : 10 sets 60 days
    Delivery Time : 60 days
    • Product Details
    • Company Profile

    Precious Metal Micro Super Fine Wire Drawing Machine 60 / 12D For 0.012-0.025mm

    60 / 12D dual frequency conversion precious metal micro Super fine wire drawing machine for 0.012-0.025mm


    Technological parameters

    Serial numberNameData
    1Inletφ0.018mm--φ0.038mm
    2Outletφ0.012mm--φ0.025mm
    3Maximum line speed1200m/min (0.1--5kgcapacity wind-up)
    4Max No drafts12(11+1)
    5Reduction6% final:5%
    6Wire drawing way2 sets of cone pulleys,2 constant speed pulleys,spray sliding type
    7Conesφ60×11sections,2sets,constant speed pulleyφ60 2sets,sprayed ceramics cone pulley
    8Main motor1.1KW three phase alternating current
    9Take up0.5KW high-speed dynamo, alternating current
    10Traversing40B-30CB servo dynamo single phase
    11Water pump90W MP-55R single phase, alternating current
    12Wire drawing light220V 40W
    13Take-up light220V 7W-11W
    14Magnetic chock24V 22W servo dynamo
    15Speed adjustment modeControl multi-loop of small cabinet panel, speed adjustment by potentiometer
    16Traverse meansBall screw transmission, positive and negative rotation of servo motor, maximum width at160mm
    17Lubricating meansdownward sprayed cone pulley, mode base automatic spray (with water tank, water pump and pay-off rack)
    18SizeLength×width× height 1450×1020×1580mm
    19Weight1.0T
    20Size of take-up reel

    φ135×170×φ110×150×φ80 (Steel plate, requirements on dynamic balance)

    φ110×72×φ100×68×φ15.5 (Aluminum alloy plate, requirements on dynamic balance)

    φ88×52×φ80×52×φ78 (Aluminum alloy plate, requirements on dynamic balance)
