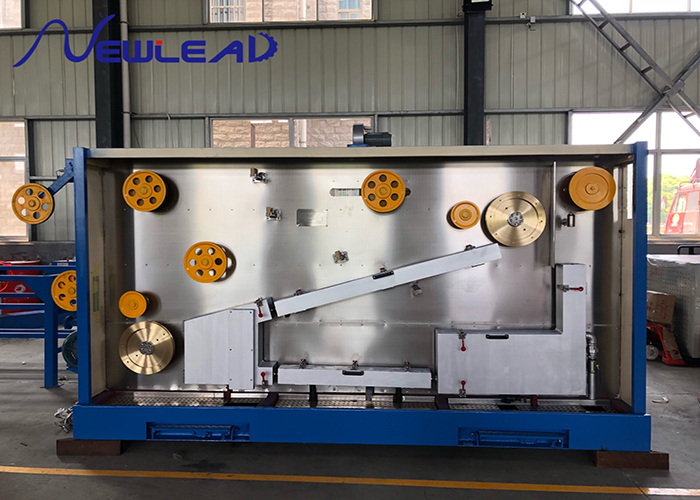

    Intermediate Brass Annealing Machine , 2-Zone Induction Annealing Machine

    Ask Lasest Price
    Brand Name : RBO
    Model Number : 350
    Certification : CE
    Price : Negotiation
    Supply Ability : 10 sets in 60 days
    Delivery Time : 60 days
    • Product Details
    • Company Profile

    Intermediate Brass Annealing Machine , 2-Zone Induction Annealing Machine

    Intermediate Brass Annealing Machine , 2-Zone Induction Annealing Machine


    Design:

    • 2-zone annealing system, electricallyneutral (no current flow to other machines)

    • freely accessible slip rings and carbonbrushes

    • coolant system integrated in the annea-ler (incl. tank, heat exchanger and pump)

    • driven by the drawing machine

    • wire path with no crossover

      Increase in quality:

    • DC resistance annealer for Non Ferrouswires with the highest quality require- ments

    • effective wire drying


    • Increase in productivity:

      • digital annealing voltage controlfor consistent wire quality

      • increased production output bymeans of 250 kW annealing power

      Energy and cost efficiency:

      ergonomic and user-friendly machine design, with easy maintenance

      enclosed wire path for reducedconsumption of protective gas


    machine

    11DST

    inlet diameter(mm)

    Φ3.5-3.0

    outlet diameter(mm)

    Φ0.8-φ2.76

    drawing line speed(MPM)

    900

    drawing dies No./Max.

    11

    slip ratio of m/c

    19.5%

    fix speed capstan slip ratio

    16.5%

    capstan

    tungsten

    capstan dia.(max.)(mm)

    Φ280

    fix speed capstan dia.(mm)

    φ 260

    frame

    weld,two conjunctions

    main motor

    55KW,ACmotor

    spooler motor

    15KW AC motor

    revise system

    PID synchronous spooler

    power control

    AC motor inverter control

    transmission type

    gear

    Payoff method

    over head

    traversing unit

    decelerate motor

    tension control

    pneumatic balance by swing arm

    lubrication system of wire drawing

    all immerse type

    suitable diameter of apool (mm)

    PND630

    capacity for wire receiving (kg)

    200-500

    power source

    380V

    brake

    pneumatic
