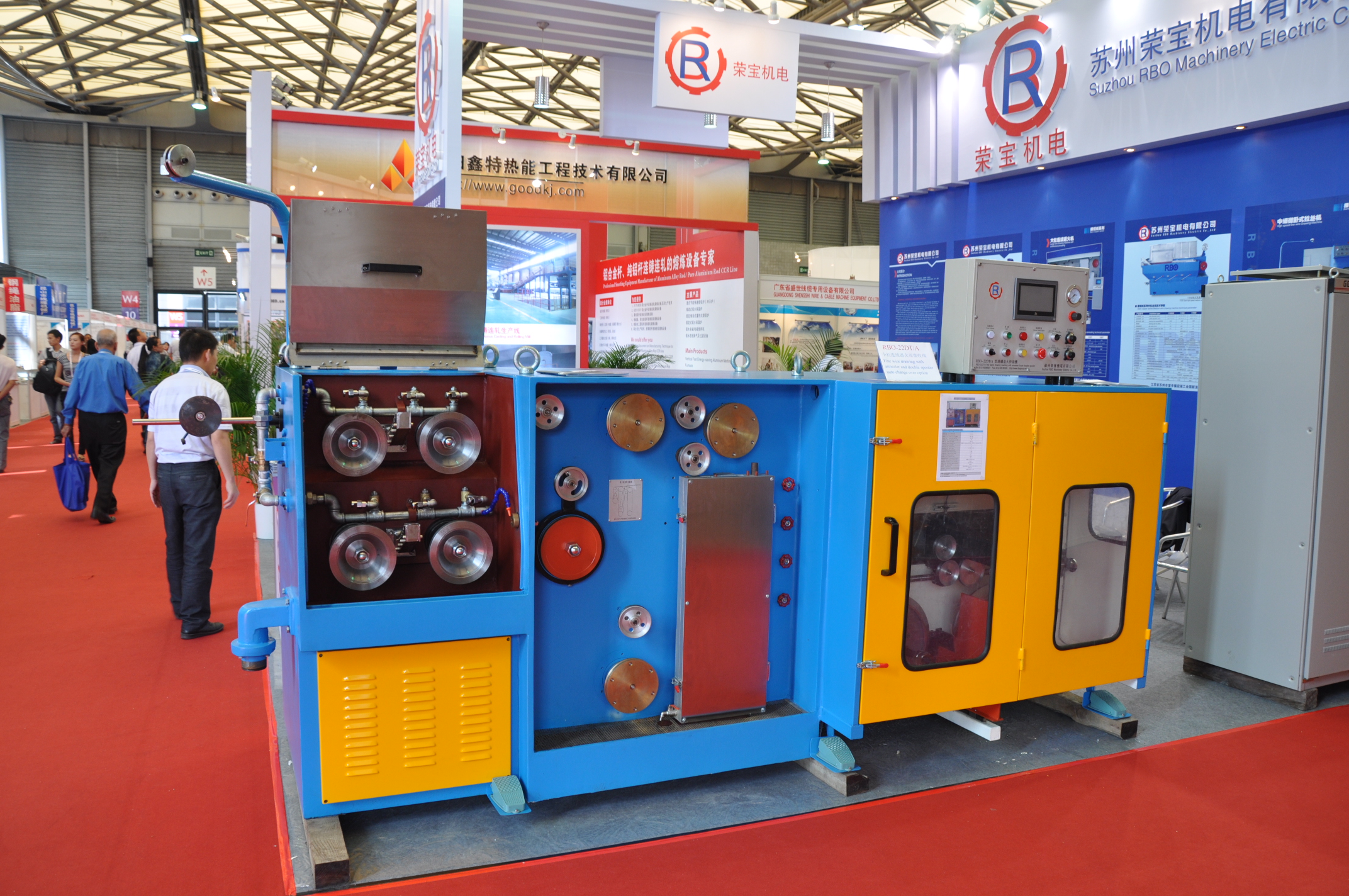

    280 Online Wire Annealing Machine For 0.15-0.6mm Wire Range Compact Drawing Machine Line

    Ask Lasest Price
    Brand Name : Newlead
    Model Number : 280
    Certification : CE
    Price : Negotiation
    Supply Ability : 10 sets in 45 days
    Delivery Time : 45 days
    • Product Details
    • Company Profile

    280 Online Wire Annealing Machine For 0.15-0.6mm Wire Range Compact Drawing Machine Line

    280 Online wire annealig machine for 0.15-0.6mm wire range compact drawing machine line


    Cost-effectiveness:

    • wire drawing and annealing in a single, compact unit

    • ergonomic and user-friendly machine design, with easy maintenance

    Technical data

    max. production speed m/s

    • closed wire path for reduced consump- tion of protective gas


    Design:

    • 2-zone annealing system, electricallyneutral (no current flow to othermachines)

    • left and right-hand versions for Non Ferrous metal wires with the highest quality requirements

    • freely accessible slip rings and carbon brushes

    • coolant system integrated in the annealer (incl. tank, heat exchanger and pump)


    Item22DT24VT14DT
    Inlet diameter(mm)Ф0.80-Ф1.20Ф0.14-Ф0.45Ф0.80-Ф1.60
    Outlet diameter(mm)Ф0.10-Ф0.40Ф0.05-Ф0.10Ф0.25-Ф0.60
    Max drawing speed(MPM)200020001200
    Main motor11KW11KW15KW
    Annealing motor16KVA3KVA30KVA
    Spooler motor3.7KW3.7KW5.5KW
    Annealing methodDC. three-section annealing
    Suitable diameter of spool (mm)Ф300
    Revise systemPID Synchronous spooler
    Capacity for wire drawing50KG
    Power source380V
    Brake typeElectromagnetic brake
    Dimension(mm)2100Lx1600Wx1700H2100Lx1600Wx1700H2568Lx1538Wx2974H
    Weight260026003000

    Item22ATD
    Inlet diameter(mm)0.70-1.20
    Outlet diameter(mm)0.15-0.50
    Max drawing speed(MPM)Max 2400
    Max drawing dies No.22
    Slip ratio of m/c17.6%
    Slip ratio of fix speed capstan15.4%
    CapstanTungsten carbide
    Max capstan diameter190MM
    Fix speed capstan diameter200MM
    Main motor15KW
    Spooler motor3KW*2
    Traversing motor80W
    Annealing A0~400
    Annealing V0~60
    Steam generator6KW
    Traversing unit

    Positive and negative directional control


    Lubrication system of wire drawingSpray type
    Suitable diameter of spool(mm)250-300
    Capacity for wire receiving(KG)MAX 50KG
    Brake

    Motor with electromagnetic brake


    Dimension (mm)3500×1200×2700
