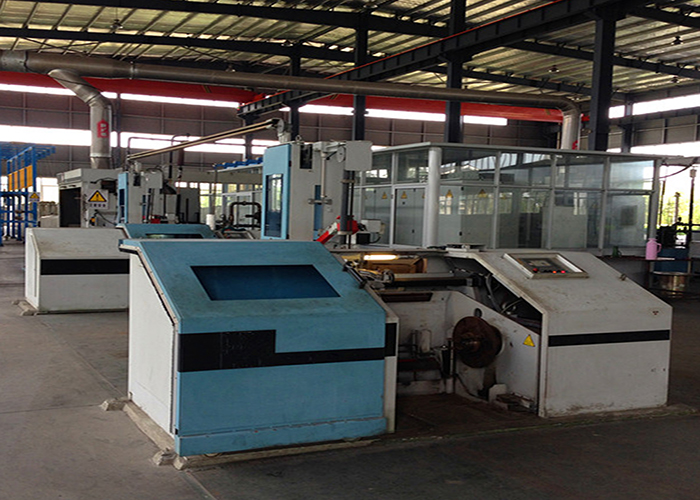

    8 Lines Multi Wire Drawing Machine High Load Extremely Smooth Operation

    Ask Lasest Price
    Brand Name : RBO
    Certification : CE
    Price : Negotiation | 1 Unit/Units cheap wire drawing machine (Min. Order)
    Model Number : M8
    Supply Ability : 1 set in 150 days
    Delivery Time : 150 days
    • Product Details
    • Company Profile

    8 Lines Multi Wire Drawing Machine High Load Extremely Smooth Operation

    8 lines multi wire drawing machine to produce fine wire 0.1-0.5 and medium wire 0.2-0.9mm


    Design:

    • compact design for space saving use of the production area

    • vibration-damping cast iron housing for long service life

    • stainless-steel drawing chamber cover and pipe

    • safe and reliable separation of drawing emulsion and gear oil via mechanical labyrinth seal (long service intervals)

    • user-friendly design

      Increase in quality:

    • extremely smooth operation and uniform load transmission by helical precision gear

    • high surface quality of the wires due to the optimized wire path in the drawing machine and optimized coolant supply to the drawing dies


    • Increase in productivity:

      • reduced downtime when changing the machine setup for different dimensions via multi-motor drive technology (quick drawing die change system)

      • NMI ( Machine Interface) color touchscreen for data entry, display of production parameters and maintenance instructions


      Energy and cost efficiency:

      • uniform electrical properties of the individual wires (individual wire path)

      • reduced consumption of electric power per ton of manufactured wire

      • cost savings for downstream processing due to the use of uniform wire bundles


      • • optimal media consumption

        long service intervals and extended drawing tool service life minimize the requirement to stock and use spare parts

    Model

    Inlet Range

    (mm)

    Outlet range

    (mm)

    Production Heads

    Drawing passes

    Capstan diameter

    (mm)

    Finished capstan diameter

    (mm)

    Annealing current

    (A)

    Drive control

    Production speed

    (m / min)

    Bobbin size

    (mm)

    MC220

    1.2-2.0

    0.15-0.6

    4

    20

    220

    220

    1200

    AC

    1500

    630

    MC100

    1.60 ~ 2.00

    0.15 ~ 0.50

    8

    22/25

    100

    140

    2000

    AC

    Max.1800

    630

    MC120

    2.60

    0.20 ~ 0.90

    8

    22/25

    120

    200

    4500

    AC

    Max.1800

    630
