    Online Horizontal Annealing Type Automatic Wire Drawing Machine Extremely Smooth Operation

    Ask Lasest Price
    Brand Name : RBO
    Certification : CE
    Price : Negotiation | 1 Unit/Units 17d wire drawing machine (Min. Order)
    Model Number : 17DST
    Supply Ability : 8 sets in 8 weeks
    Delivery Time : 8 weeks
    • Product Details
    • Company Profile

    Online Horizontal Annealing Type Automatic Wire Drawing Machine Extremely Smooth Operation

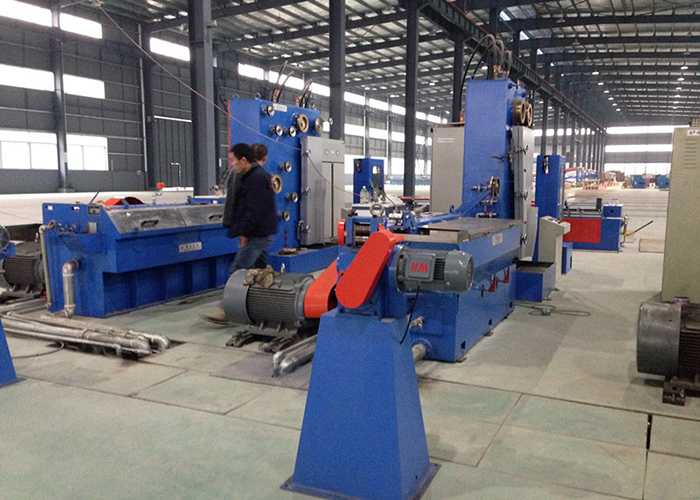

    17DST High speed Intermediate wire drawing machine with online annealer


    Design:

    • optimum wire cooling/lubrication by fully submerged drawing basin

    • extremely smooth operation and uniform load transmission by helical precision gear

    • highly reliable separation of drawing emulsion and gear oil via mechanical seal (long service intervals)

    • user-friendly design

      Increase in quality:

      • straight wire path caused by staggered cone pairs (very high wire surface quality)

      Increase in productivity:

    • NMI (Machine Interface) color touchscreen for data entry, display of production parameters and maintenance instructions


    Energy and cost efficiencys:

    • reduced consumption of electrical energy per ton of produced wire

    • long service intervals and extended drawing die service life minimize costs and spare die stock levels

    • reduced consumption of oil and drawing lubricant



    machine type

    17DST


    inlet diameter(mm)φ2.5-φ3.5
    outlet diameter (mm)φ0.4-φ2.0/1.8/1.6/1.2 choice
    drawing dies No./Max(MPM)1500

    main motor

    55KW
    annealing motor90KVA
    spooler motor15KW
    annealing medthDC. three-section annealing
    suitable diameter of spoolφ630(MAX)
    revise systemPID synchronous spooler
    capacity for wire receiving100-400KG
    power source380V. OEM
    brake
    machine dimension1000L×1400W×2450H
    machine weight7300






    Quality Online Horizontal Annealing Type Automatic Wire Drawing Machine Extremely Smooth Operation for sale
