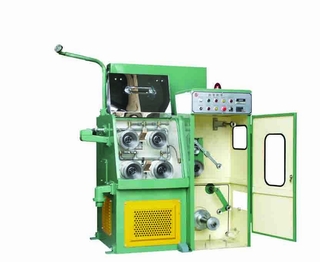

    24DL-A Straight Line Wire Processing Machine With Dual Inverter Control

    Ask Lasest Price
    Brand Name : Newlead
    Model Number : 24DL-A
    Certification : ISO9001;CE
    Price : Negotiation
    Supply Ability : 1 set in 45 days
    • Product Details
    • Company Profile

    24DL-A Straight Line Wire Processing Machine With Dual Inverter Control

    Copper clad Aluminum CCA wire fine wire drawing machine for fine wire range


    machine type24DL-A24D24DL-B
    inlet diameter(mm)1.2-2.050.5-1.20.5-1.0
    outlet diameter(mm)0.25-0.80.4-1.20.08-0.25
    drawing line speed(MPM)200020001800
    drawing dies No./Max242424
    slip ratio of m/c15%13%10%
    fix speed capstan slip ratio8%8%6%
    capstanceramic plasma
    capstan dia.(max.)(mm)194194194
    fix speed capstan dia.(mm)159159159
    frameironed cast
    main motor515KW three phase inductor motor11KW three phase inductor motor7.5KW three phase inductor motor
    spooler motor5.5W three phase inductor motor3.7W three phase inductor motor2.2KW three phase inductor motor
    revise systemPID synchronous spooler
    inverter controlDual inverter control
    transmission typechainflat beltflat belt
    send-out methodover head
    traversing unitflat belt timing motor
    tension controlpneumatic balance by swing arm
    lubrication system of wire drawingspray
    suitable diameter of spool(mm)300300300
    capacity for wire receiving((kg)35100-4003535
    bobbin loading unloading typeshaft type
    power source380V380V380V
    brakepneumatic brakemagneticc brake
    machine dimension2050L1600W1900H2050L1600W1900H2050L1600W1899H
    machine weight250025002500



    Our Services

    Pre-sale training:

    In order to guarantee the customers fully to operate the machine, if the customer need, we can help customer training, includes:
    1)Correct operating mode
    2)Correct maintenance way
    3)Remove simple problem of our product

    After-sale maintenance service is:

    1,Both mechanical and electrical parts are provided 2 years limited warranty.
    2,Manufacturing experience with more than 20years

    We shall work with you as a team and to win as a team.
    We provide not only quality products but also best service to you.
