    Precision Spare Parts For Fine Wire Drawing Machine Cones / Pulleys / Wheels

    Ask Lasest Price
    Brand Name : NEWLEAD
    Model Number : FWD
    Certification : CE
    Price : Negotiation
    Supply Ability : 50 pcs in 30 days
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Precision Spare Parts For Fine Wire Drawing Machine Cones / Pulleys / Wheels


    Spare parts for Fine wire drawing machine cones,pulleys,wheels,capstan,shafts,contact annealing band​

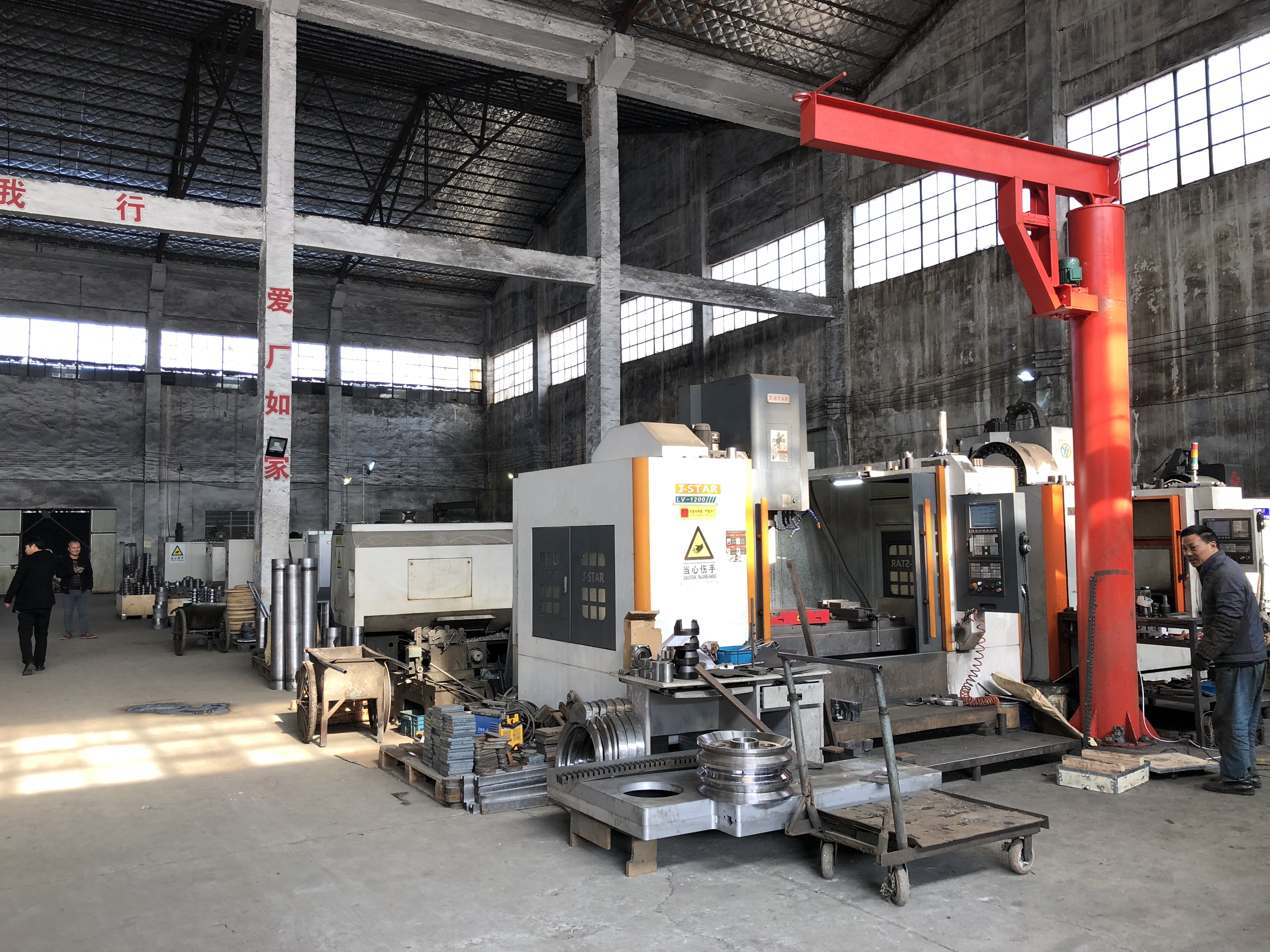

    We are the biggest manufactuter of spare parts for wire drawing machine,please go browse our producing process Video site:


    1.https://youtu.be/aGsCWkt86co


    2.https://youtu.be/jrLbq56Yg40






    1:wire drawing in a single, compact

    unit

    2:ergonomic and user-friendly machine design,

    with easy maintenance

    3:left and right-hand versions for Non Ferrous

    4:metal wires with the highest quality

    5:requirements

    6:single wire path with no crossover

    effective single-wire drying

    machine type22DS24DS
    inlet diameter(mm)0.8--1.20.5-1.0
    outlet diameter(mm)0.1--0.40.08-0.25
    drawing line speed(MPM)25002500
    drawing dies No./Max2224
    slip ratio of m/c15%13%
    fix speed capstan slip ratio8%8%
    capstanceramic plasmaceramic plasma
    capstan dia.(max.)(mm)φ242φ242
    fix speed capstan dia.(mm)φ207φ207
    frameironed castironed cast
    main motor11KW three phase inductor motor11KW three phase inductor motor
    spooler motor3.7KW three phase inductor motor3.7KW three phase inductor motor
    revise systemDual inverter control
    inverter controlDual inverter control
    transmission typeflat belt
    payoff methodover head
    traversing unitflat belt + timing motor
    tension controlweightbalance by swing arm
    lubrication system of wire drawingspray
    suitable diameter of spool (mm)φ300φ300
    capacity for wire receiving(kg)50-6050-60
    bobbin loading & unloading typeshaft type
    power source380V/220/415/480
    brakepneumatic brake
    machine dimension2050L×1600W×1900H2050L×1600W×1900H
    machine weight20002000
