    Steel Bobbin Continuous Wire Drawing Machine , Copper Wire Making Machine For Cable

    Ask Lasest Price
    Brand Name : NEWLEAD
    Model Number : 250-300
    Price : Negotiation
    Certification : ISO CE
    Supply Ability : 100 pcs in 30 days
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Steel Bobbin Continuous Wire Drawing Machine , Copper Wire Making Machine For Cable

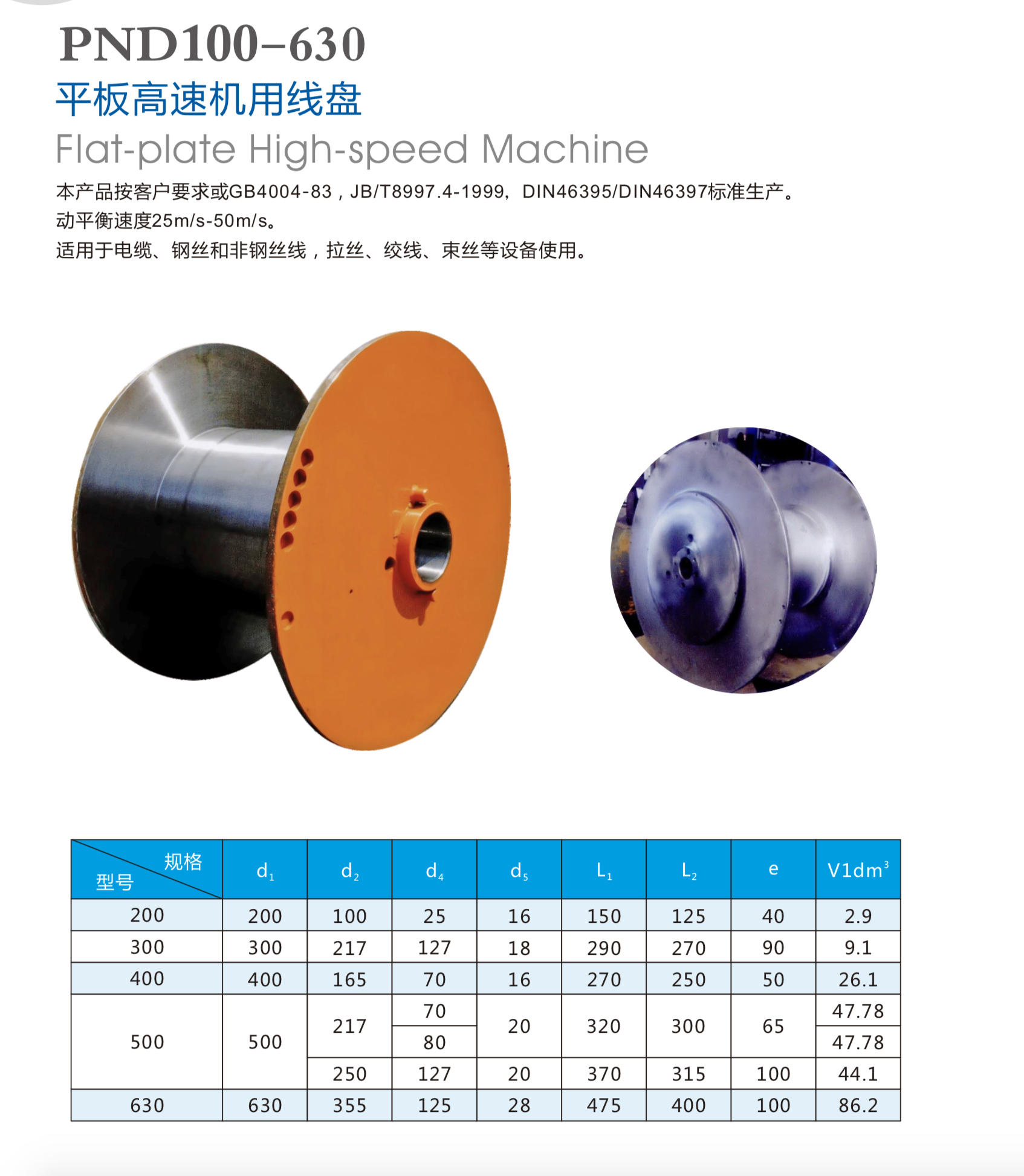

    DIN250 to DIN300 metal bobbin for fine wire drawing machine GB4004-83,JB/T8997.4-1999,DIN46395 /DIN46397 standard.


    Steel bobbin with massive flanges,

    barrel.bore and hub.Dimension

    either according to customer's specifications or

    GB4004-83,JB/T8997.4-1999,DIN46395 /DIN46397 standard.

    Dynamically balanced for speed from 25m/s to 50m/s.

    For cable,ferrous and non-ferrous wire.

    For drawing,stranding and bunching machines.

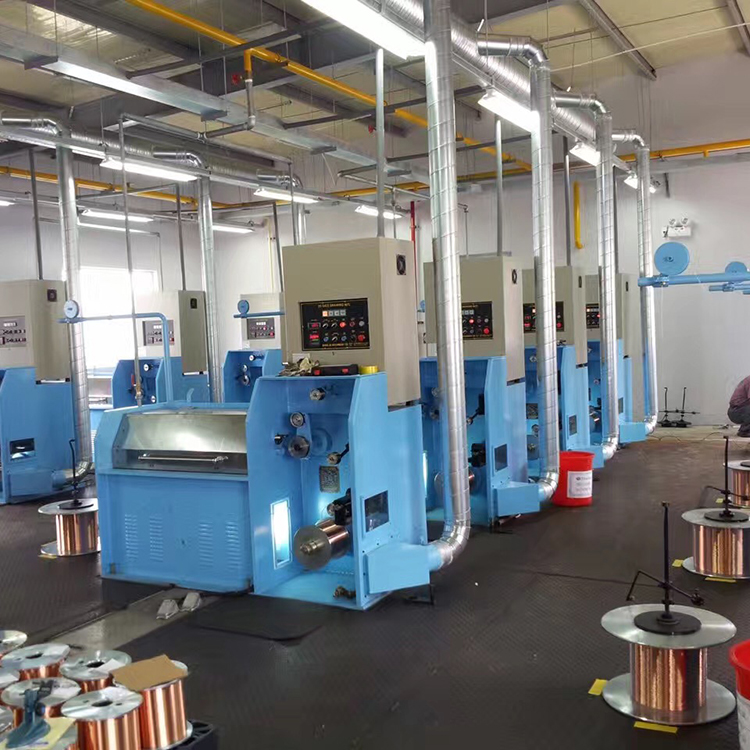

    machine type22DT

    24DT

    14DT
    inlet diameter(mm)φ0.8-φ1.2φ0.5-φ1.0φ0.8-φ1.6
    outlet diameter (mm)φ0.1-φ0.4φ0.08-φ0.25φ0.25-φ0.60
    drawing line speed(MPM)200020001200

    main motor

    11KW11KW15KW
    annealing power16KVA16KVA30KVA
    take-up motor3.7KW3.7KW5.5KW
    annealing powerDC. three-section annealing
    suitable diameter of spoolφ300φ300φ300
    revise systemPID synchronous spooler
    capacity for wire receiving50KG50KG50KG
    power source380V380V380V
    brakemagnetic brake
    machine dimension2100L×1600W×1700H2100L×1600W×1700H2568L×1538W×2974H
    machine weight300030003500
