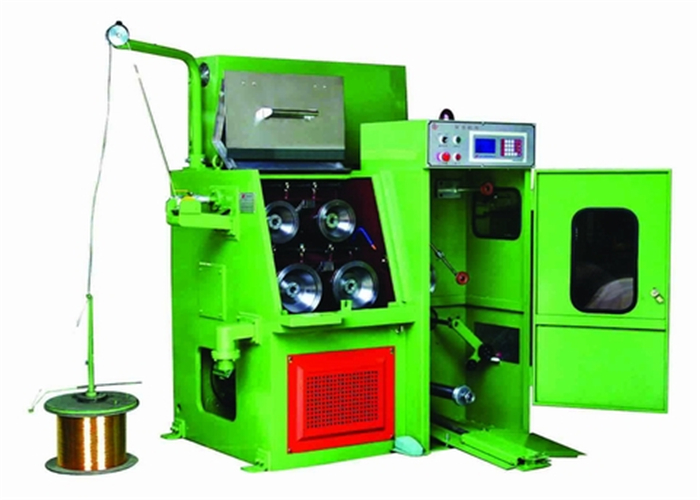

    22DS Straight Line Super Drawing Machine Compact Unit Easy Maintenance

    Ask Lasest Price
    Brand Name : RBO
    Model Number : 22DS
    Certification : CE
    Price : Negotiation | 1 Unit/Units aluminium bobbin machine (Min. Order)
    Supply Ability : 5 units in 30 days
    Delivery Time : 45 days
    • Product Details
    • Company Profile

    22DS Straight Line Super Drawing Machine Compact Unit Easy Maintenance

    22DS High speed fine wire drawing machine compact unit


    1: wire drawing in a single, compact

    unit

    2: ergonomic and user-friendly machine design,

    with easy maintenance

    3: left and right-hand versions for Non Ferrous

    4: metal wires with the highest quality

    5: requirements

    6: single wire path with no crossover

    effective single-wire drying


    machine type22DS
    inlet diameter(mm)0.6--1.2
    outlet diameter(mm)0.1--0.4
    drawing line speed(MPM)2500
    drawing dies No./Max22
    slip ratio of m/c15%
    fix speed capstan slip ratio8%
    capstanceramic plasma
    capstan dia.(max.)(mm)φ242
    fix speed capstan dia.(mm)φ207
    frameironed cast
    main motor11KW three phase inductor motor
    spooler motor3.7KW three phase inductor motor
    revise systemDual inverter control
    inverter controlDual inverter control
    transmission typeflat belt
    payoff methodover head
    traversing unitflat belt + timing motor
    tension controlweightbalance by swing arm
    lubrication system of wire drawingspray
    suitable diameter of spool (mm)φ300
    capacity for wire receiving(kg)50-60
    bobbin loading & unloading typeshaft type
    power source380V/220/415/480
    brakepneumatic brake
    machine dimension2050L×1600W×1900H
    machine weight2000
