    21DT EDM Brass Multi Wire Drawing Equipment 380V Finished Product 0.1-0.3mm

    Ask Lasest Price
    Price : Negotiation | 1 Unit/Units cheap wire drawing machine (Min. Order)
    Supply Ability : 5 Sets in 60 days
    Delivery Time : 60 days
    • Product Details
    • Company Profile

    21DT EDM Brass Multi Wire Drawing Equipment 380V Finished Product 0.1-0.3mm

    21DT EDM brass fine wire drawing machine finished prodcut 0.1-0.3mm


    Reciprocating type High Speed Wire cut Electrical Discharge Machining

    Low Speed one-way walk Wire cut Electrical Discharge Machining


    Full immersed lubricant system,transmission by flat belt,low noise,high effciency.

    Imported PLC and color touch screen,which is convenient for the operator to set and display the parameter

    on the touch screen.

    Abrasion-proof cone pulley and capstan with highly accurate,keep wire verticality and quality,which is good

    for next process.

    Full-automatic take-up method,save human resource and increase work efficiency.Automatic protection device,machine auto stops if wire disorder or break.


    Item21DT
    Inlet diameter(mm)1.2
    Outlet diameter(mm)0.1-0.3
    Max drawing speed(MPM)Max 1400
    Max drawing dies No.21
    Slip ratio of m/c15%
    CapstanCeramic coating
    Main motor15KW
    Spooler motor1.5KW
    Traversingservo/stepper motor
    Annealing V12KVA

    Lubrication system of wire drawingSpray type
    Capacity for wire receiving(KG)P3-P5
    Brake

    Motor with electromagnetic brake


    Dimension (mm)3500×1200×2700

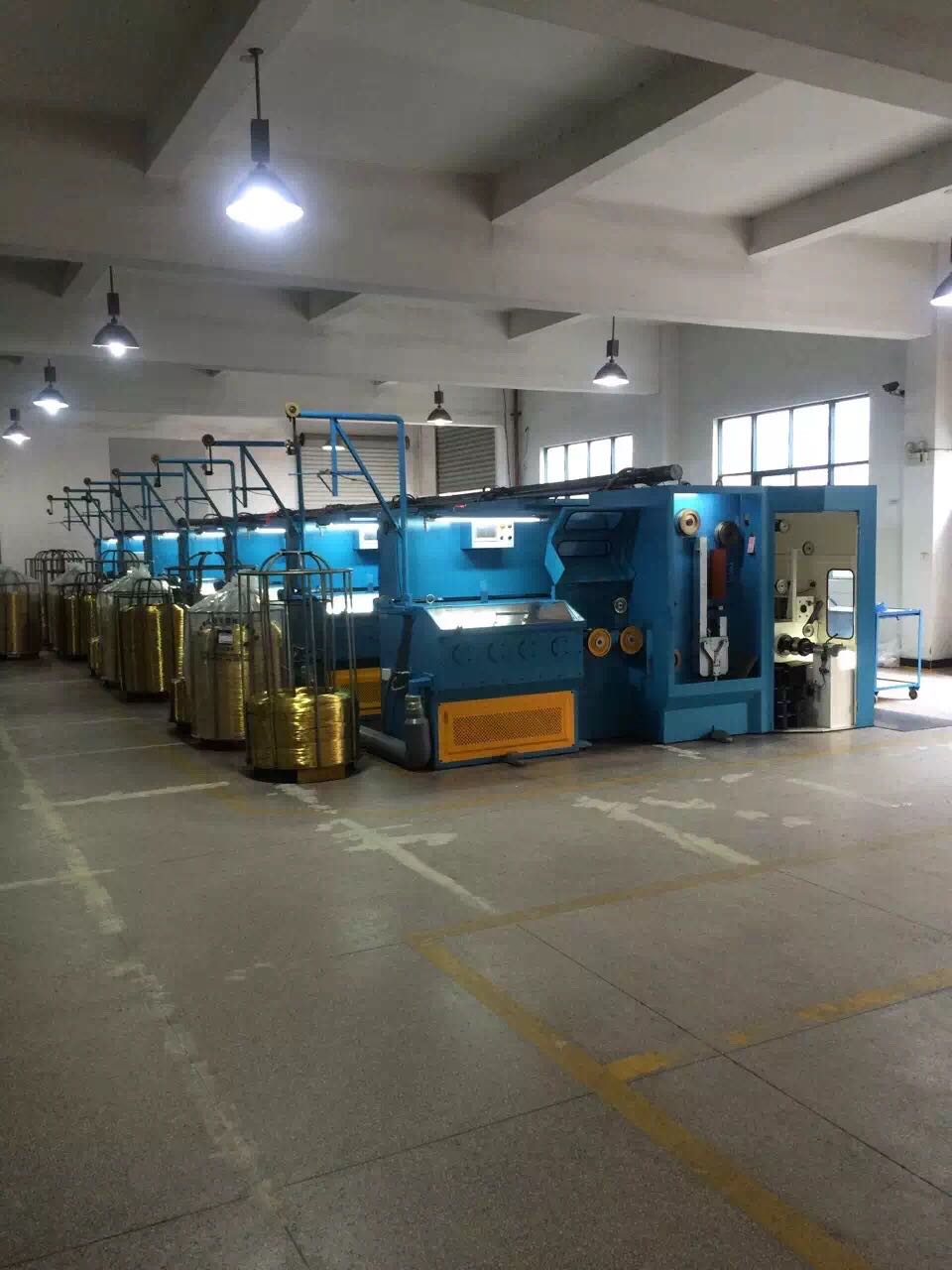

    Product Picture



    Quality 21DT EDM Brass Multi Wire Drawing Equipment 380V Finished Product 0.1-0.3mm for sale
