    8 Drawing Drafts Wire Rod Drawing Machine , 8mm Copper Rod Drawing Machine

    Ask Lasest Price
    Brand Name : BRO
    Model Number : 8DT
    Price : Negotiation
    Certification : ISO CE
    Supply Ability : 90 days one set
    Delivery Time : 100 days
    • Product Details
    • Company Profile

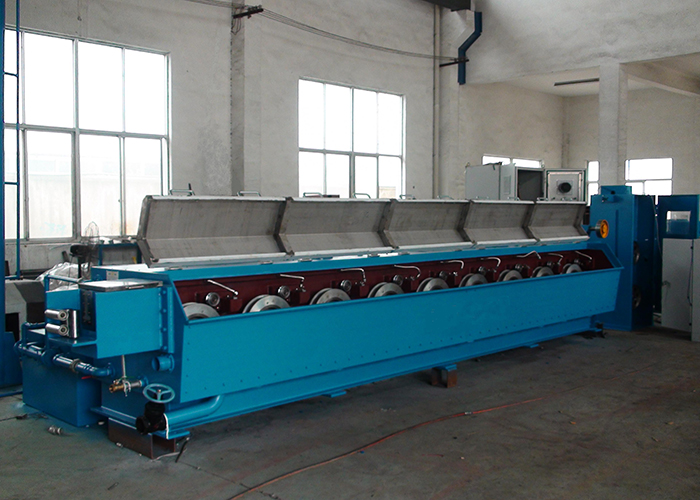

    8 Drawing Drafts Wire Rod Drawing Machine , 8mm Copper Rod Drawing Machine

    Inlet 8mm Outlet 3mm copper rod breakdown machine 8 drawing drafts


    Advantages of this safe investment choice

    Design

    © optimized wire cooling/lubrication (fully-immersed drawing basin)

    © helically geared precision gearing for extremely smooth operation and uniform load transmission

    © vibration-damping black cast iron housing for long service life

    © highly reliable separation of drawing emulsion and gear oil via mechanical seal(long service intervals)

    © user-friendly design

    Improve in quality:

    © high surface quality of the wires due to the optimized wire path(2°C inclination of the gearing/drawing capstans)

    Improve in productivity:

    © reduced downtime when changing the machine setup for different dimensions via multi-motor drive technology(quick drawing die change system)

    © reduced downtime due to touchscreen based user guidance and fault display


    machine type

    8DT




    inlet diameter (mm)

    φ8




    outlet diameter (mm)

    φ2.6-φ3.0




    transmission type

    transmit by high precision

    drawing line speed(MPM)

    600




    lubrication system of wire drawing

    all immerse type

    capstan dia.(max.) (mm)

    φ400




    fix speed capstan dia.(mm)

    φ400




    main motor (KW)

    132(AC)




    drawing dies no./max

    8




    annealing medthod

    DC three section spooler

    max.anneaing voltage (DC)

    55V




    max.anneaing current (DC)

    4000A




    Drive method

    D.C. drive
