PV Ribbon machine PV ribbon tabbing wire PV wire making whole line

Ask Lasest Price
Brand Name :	NEWLEAD
Certification :	CE
Price :	Negotiation
Model Number :	PV100
Supply Ability :	1 set in 70 days
Delivery Time :	75 days

Add to Cart

Product Details
Company Profile

PV Ribbon machine PV ribbon tabbing wire PV wire making whole line

PV ribbon machine

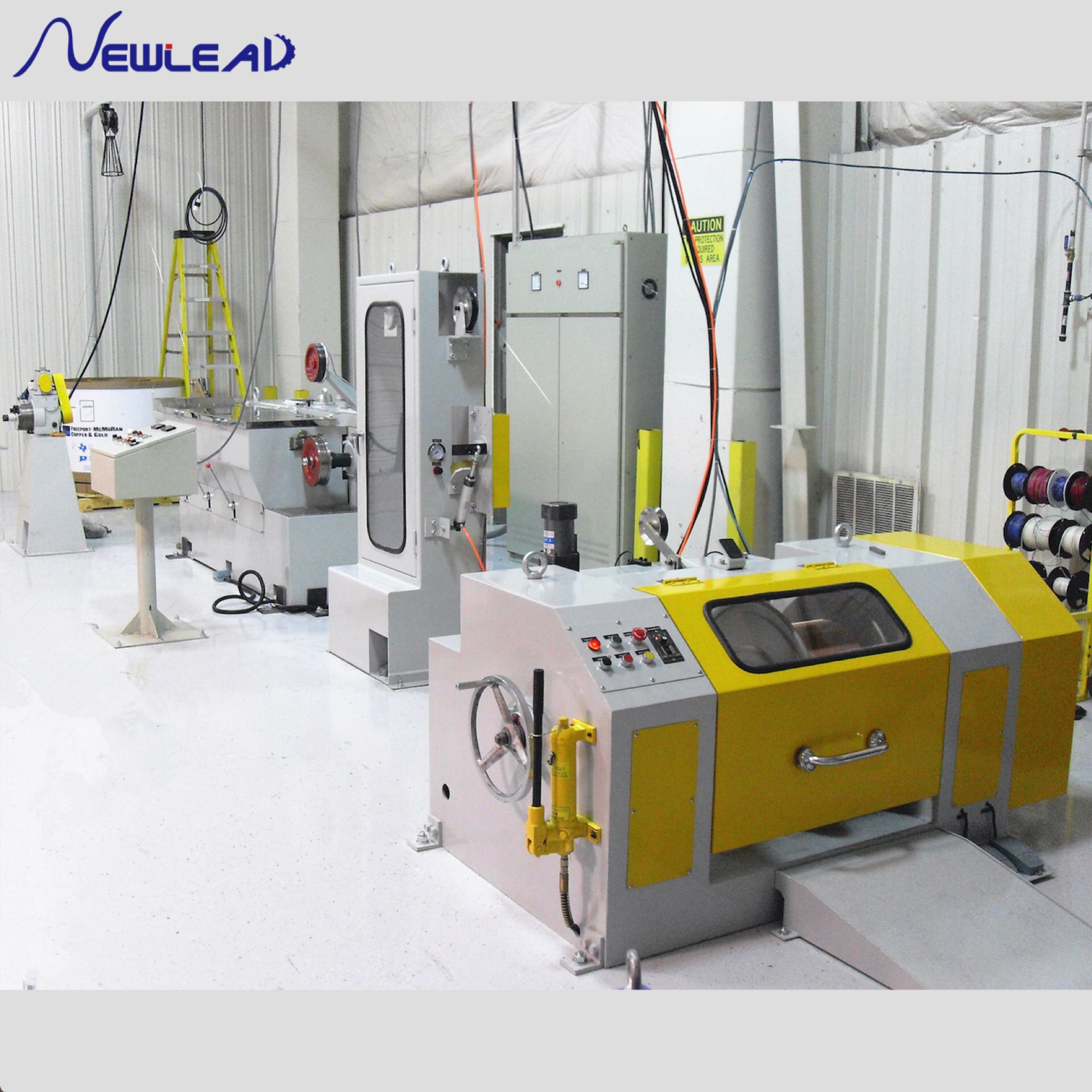

1. Intermediate and fine wire drawing 14D Inlet 0.8-1.6mm,outlet 0.2-0.8mm

PND400-500-630 Options

2.PV ribbon wire

2.1PV Ribbon is made from high quality oxygen-free copper. The copper is manufactured into flat copper and then tinning on the double sides. Extra-soft ribbon has higher performance than general;for instance, lower cell debris and higher conversion efficiency of solar cell.

Hot tin plating process
Stable property Environmental performance of the production processes
High elongation High tensile strength Corrosion resistance Oxidation resistance

Rolling tin integration
Lower yield strength Good solderability
Suitable for manual welding and all kinds of welding machines

Performance parameters:

Item	Performance Index	Others
Copper Content Of Substrate	≥99.95%	common specifications:0.23mm1.2mm 0.23mm1.3mm 0.23mm1.5mm 0.25mm1.0mm 0.25mm1.2mm 0.25mm1.3mm 0.25mm*1.5mm
Substrate Resistivity	≤0.01724 Ω·mm²/m
Fusion Point	189℃
Single-sided Coating	15～30um
Thickness Tolerance	±0.01mm
Width Tolerance	±0.05mm
Elongation	≥25%
Tensile Strength	150～220MPa
Yield Strength RP0.2	≤60MPa
Sickle Bending	≤0.3%
Tabbing Ribbon Resistivity	≤0.022Ω·mm²/m

Note:We can provide different specifications and different thickness of tin according to customers’ request.

2.2

Busbar is made from high quality oxygen-free copper. Then tinning on the double sides of the copper and cutting into a specified length. Uniform size Good solderability.

Hot tin plating process
Main technology Stable property Environmental performance of the production processes

Performance parameters:

Item	Performance Index	Others
Copper Content Of Substrate	≥99.95%	common specifications: 0.29mm6.0mm 0.30mm6.0mm 0.35mm5.0mm 0.35mm6.0mm 0.35mm7.0mm 0.35mm8.0mm
Substrate Resistivity	≤0.01724Ω·mm²/m
Fusion Point	189℃
Single-sided Coating	15～30um
Thickness Tolerance	±0.01mm
Width Tolerance	±0.05mm
Elongation	≥30%
Tensile Strength	200～240MPa
Sickle Bending	≤0.3%
Bus Ribbon Resistivity	≤0.022Ω·mm²/m

Note:We can provide different specifications and different thickness of tin according to customers’ request.

2.3

PV ribbon_MBB ie Multi-Tabbing PV Wire is the newest development

for the multiple Bus-bar technology.

Over the years, to engineer a solder coated copper round wire for cell

interconnection.Multi-Tabbing PV Wire is available in all common copper

grades. including high-purity oxygen-free copper. There are no limitations

regarding the available dimension you need to build the best performan-

ce modules.

We have developed a solder coating process to achieve concentric coating

layers to guarantee consistent soldering results in the stringing process.

PV ribbon/Multi_ tabbing PV wire specification
Item	Performance index
Base material	0.2-0.5mm,Oxygen free copper；Ratio of copper≥99.97%
Substrate Resistivity	ρ≤0.017241 mm²/m
Tin coating composition	Sn60%Pb40%
Diameter Tolerance	≤0.01㎜
Yield Strength RP0.2	≤72MPa
Tensile Strength	≥150MPa
Elongation	≥20%

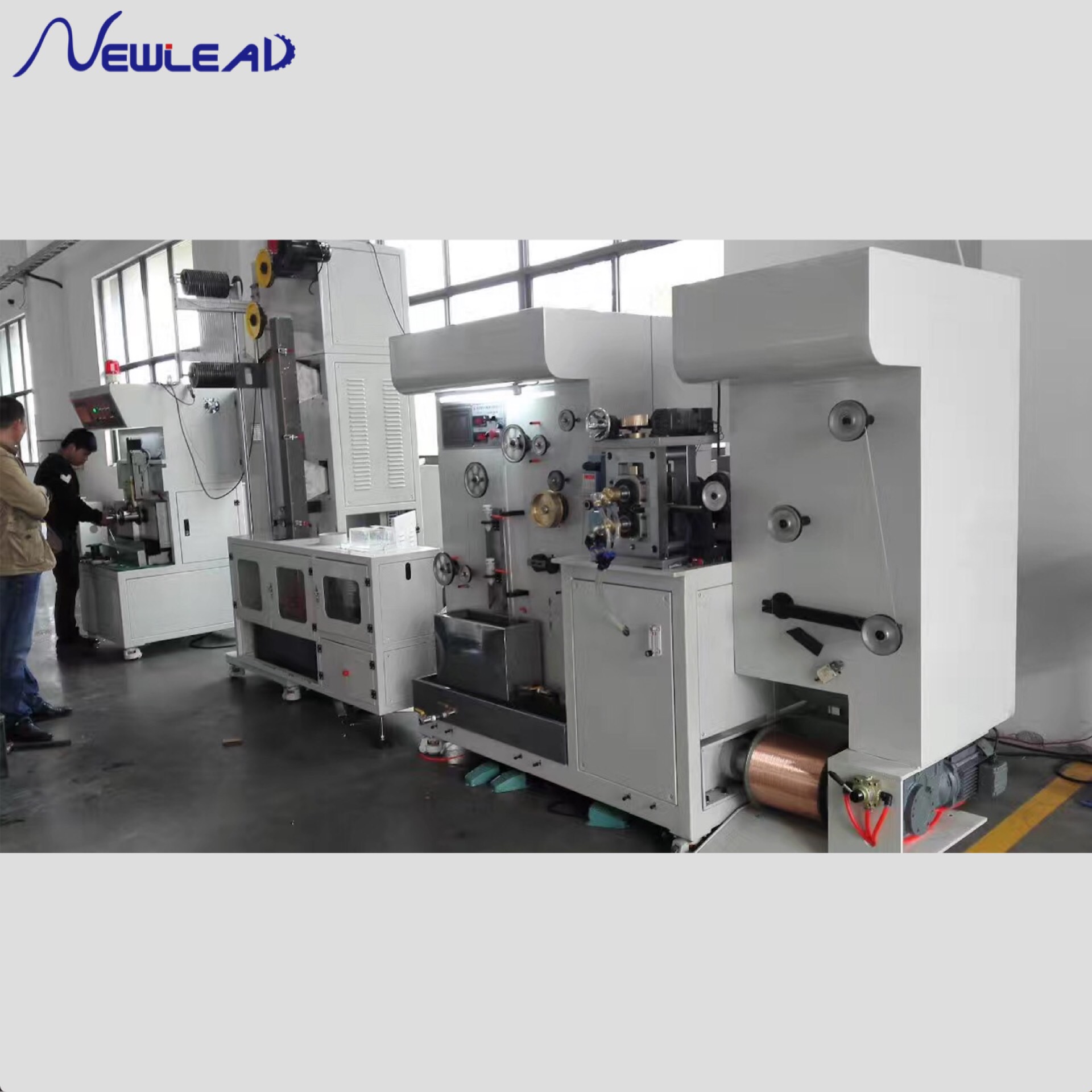

1.New advanced PV ribbon rolling,annealing and tinning machine

1:PV Ribbon: no holes, pinholes, spots

2:Tolerance: thickness tolerance:±5μ,Thickness tolerance:±0.015mm,camber bend ≤4mm/1m

3:Yield strength:0.25*1.2≤52MPa

4:Speed:110-130m/min

5:Payoff bobbin:500 ,motor drive

6:The soldering groove adopts two steps:front part soldering, second part brush liquid with blower drying

7:Tin tank:130kg

8:The soldering groove and tin groove are sealed with ventilation air,no smell in workshop

9:PV ribbon cooling way:Aluminum duct cooling,1.8m height

10:Leading: two 4 grooves wheels

11:Dancer: dancer pulley 150mm,time over 30s

12:Winding: Servo control,precision layer winding,any position start to wind.

13:Automatic control wire position,less wear rolling drum.

14:Annealing wheels were separate control

15:Install dimension:7000*1300*2600

16:Power consumption:12KW.H

2.17DS Intermediate wire drawing machine,Inlet 2.5-3.0mm,outlet 0.4-1.6mm

Item	17DS
Inlet diameter(mm)	Ф2.5-Ф3.0
Outlet diameter(mm)	Ф0.4-Ф1.2
Max drawing speed(MPM)	1200
Main motor	45KW
Spooler motor	11KW
Suitable diameter of spool (mm)	Ф630(Max)
Revise system	PID Synchronous spooler
Capacity for wire drawing	100-400KG
Power source	380V
Brake type	Pneumatic brake
Dimension(mm)	1000Lx1400Wx2450H
Weight	6500
