    Big Finished Intermediate Wire Drawing Machine With Online Annealing 0.8-2.78mm

    Ask Lasest Price
    Brand Name : RBO
    Model Number : 11DST
    Certification : CE
    Price : Negotiation | 1 Unit/Units practical wire drawing machine (Min. Ord
    Supply Ability : 60 one set
    Delivery Time : 60 days
    • Product Details
    • Company Profile

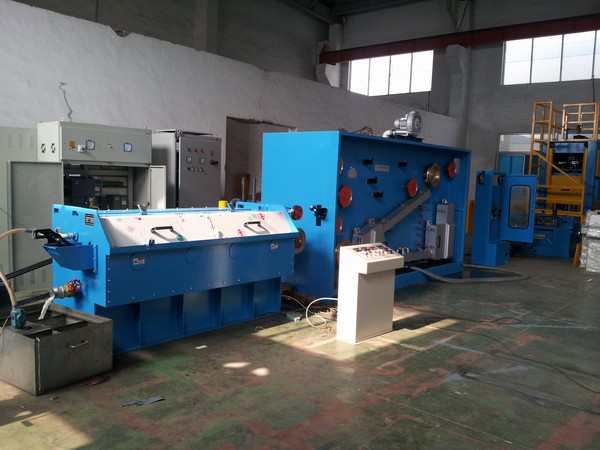

    Big Finished Intermediate Wire Drawing Machine With Online Annealing 0.8-2.78mm


    Cable factory desgined Intermediate wire drawing machine big outlet range 0.8-2.78 with online annealing


    • NMI ( Machine Interface) color touchscreen for data entry, display of production parameters and maintenance instructions

    1. Increase in quality:

      • straight wire path caused by staggered cone pairs (very high wire surface quality)

      Increase in productivity:

    2. .special desgined for cable facotry,big oulet range 0.8-2.78mm

    3. .Online or office annealer choice

    machine

    11DST

    inlet diameter(mm)

    Φ3.5-3.0

    outlet diameter(mm)

    Φ0.8-φ2.76

    drawing line speed(MPM)

    900

    drawing dies No./Max.

    11

    slip ratio of m/c

    19.5%

    fix speed capstan slip ratio

    16.5%

    capstan

    tungsten

    capstan dia.(max.)(mm)

    Φ280

    fix speed capstan dia.(mm)

    φ 260

    frame

    weld,two conjunctions

    main motor

    55KW,ACmotor

    spooler motor

    15KW AC motor

    revise system

    PID synchronous spooler

    power control

    AC motor inverter control

    transmission type

    gear

    send-out method

    over head

    traversing unit

    decelerate motor

    tension control

    pneumatic balance by swing arm

    lubrication system of wire drawing

    all immerse type

    suitable diameter of apool (mm)

    PND630

    capacity for wire receiving (kg)

    200-500

    power source

    380V

    brake

    pneumatic
