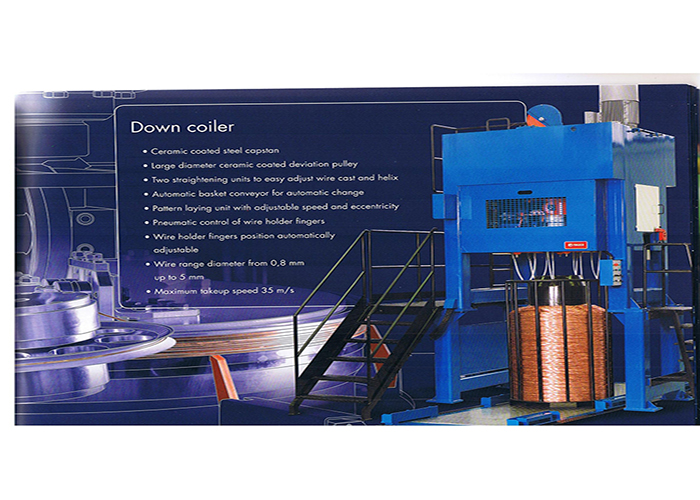

    Continuous Coiler For Intermediate Wire Drawing Machine 650 And 800 Options

    Ask Lasest Price
    Brand Name : RBO
    Model Number : 17DST
    Certification : CE
    Price : Negotiation | 1 Unit/Units intermediated copper wire machine (Min.
    Supply Ability : 20 sets in 10 weeks
    Delivery Time : 10 weeks
    • Product Details
    • Company Profile

    Continuous Coiler For Intermediate Wire Drawing Machine 650 And 800 Options


    Design:

    • robust construction, easy and reliable operation

    • easy synchronization with existing equipment, due to own PLC and dancer for speed adjustment

    • strong planetary gear flyer

    • rosette pattern lay using either RDF(Rotating Deflecting Fingers) or RTT(Rotating Thumping Table)

      Increase in quality:

    • excellent coiled package quality at high coiling speeds

    • high package quality through repeatableand accurate fingers adjustment duringoperation by means of a motor operated “Spring Finger Gang Adjustment”

      Increase in productivity:

    • at next process step: tangle-free pay-off at high speeds

    • inline operation with high speed drawing and extrusion lines

    • application: insulated stranded conduc- tors, hard and soft bare wire (Cu, AI, AI-AIIoys) and plated wire


    soft solid copper mm 1.0 – 3.2AWG 16 – 8

    hard solid copper mm 1.0 – 2.5AWG 16 – 10

    package weight (bare copper) kg 1,000 – 1,800lb. 2,200 – 3,800

    top speed m/s 31fpm 6,200

    nominal capstan diameter mm 760inch 30

    drive kW 18


    machine

    17DST

    inlet diameter(mm)

    Φ2.5-3.0

    outlet diameter(mm)

    Φ0.4-φ1.8

    drawing line speed(MPM)

    1500

    drawing dies No./Max.

    17

    slip ratio of m/c

    20%

    fix speed capstan slip ratio

    15.5%

    capstan

    tungsten

    capstan dia.(max.)(mm)

    Φ250

    fix speed capstan dia.(mm)

    φ 250

    frame

    weld,two conjunctions

    main motor

    45KW,ACmotor

    spooler motor

    15KW AC motor

    revise system

    PID synchronous spooler

    power control

    AC motor inverter control

    transmission type

    gear

    Payoff method

    over head

    traversing unit

    decelerate motor

    tension control

    pneumatic balance by swing arm

    lubrication system of wire drawing

    all immerse type

    suitable diameter of apool (mm)

    PND630

    capacity for wire receiving (kg)

    200-500

    power source

    380V.( OEM)

    brake

    pneumatic
