    8mm Copper Rod Copper Wire Drawing Machine Helically Geared Precision Gearing

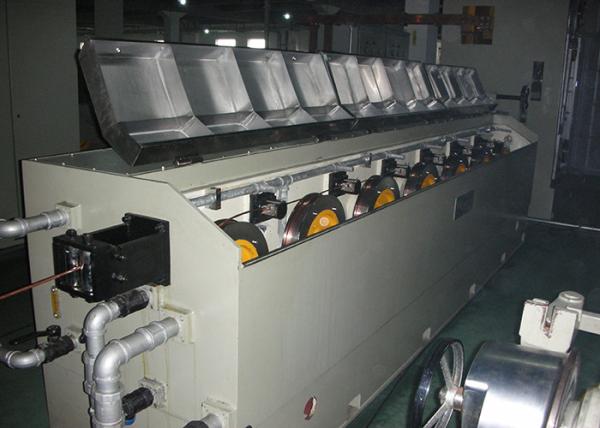

    Rod breakdown machine Copper wire drawing machine with continuous resistance annealer Inlet 8mm,Outlet 2.6-3.0mm ​


    Advantages of this safe investment choice

    rod breakdown machine process

    Design

    © optimized wire cooling/lubrication (fully-immersed drawing basin)

    © helically geared precision gearing for extremely smooth operation and uniform load transmission

    © vibration-damping black cast iron housing for long service life

    © highly reliable separation of drawing emulsion and gear oil via mechanical seal(long service intervals)

    © user-friendly design

    Improve in quality:

    © high surface quality of the wires due to the optimized wire path(2°C inclination of the gearing/drawing capstans)

    Improve in productivity:

    © reduced downtime when changing the machine setup for different dimensions via multi-motor drive technology(quick drawing die change system)

    © reduced downtime due to touchscreen based user guidance and fault display


    machine type

    8DT

    9DT

    11DT

    13DT

    inlet diameter (mm)

    φ8

    φ8

    φ8

    φ8

    outlet diameter (mm)

    φ2.6-φ3.0

    φ2.2-φ4.0

    1.60-4.0

    φ1.2-φ4.5

    transmission type

    transmit by high precision

    drawing line speed(MPM)

    780

    780

    1500

    1500

    lubrication system of wire drawing

    all immerse type

    capstan dia.(max.) (mm)

    φ450

    φ450

    φ450

    φ450

    fix speed capstan dia.(mm)

    φ450

    φ450

    φ450

    φ450

    main motor (KW)

    160(DC)

    160(DC)

    250(DC)

    280 (DC)

    drawing dies no./max

    8

    9

    11

    13

    annealing medthod

    DC three section spooler

    max.anneaing voltage (DC)

    55V

    55V

    55V

    60V

    max.anneaing current (DC)

    4000A

    4000A

    4000A

    5000A

    Drive method

    D.C. drive
