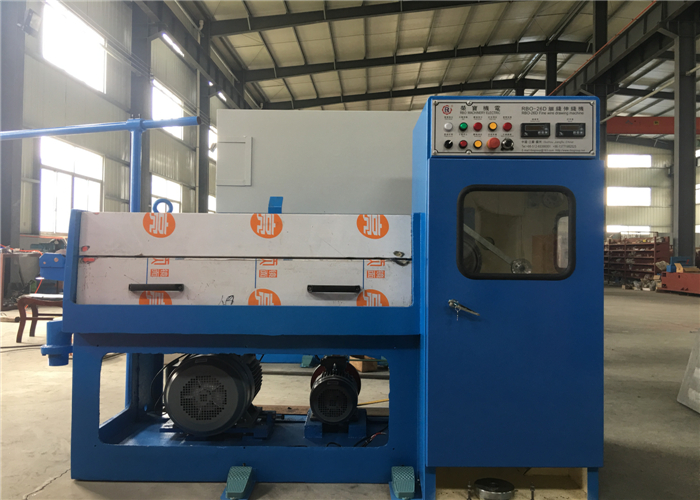

    26D Horizontal Copper Wire Manufacturing Machine Inlet 0.95-1.65mm Outlet 0.1-0.4mm

    Ask Lasest Price
    Brand Name : RBO
    Model Number : 26D
    Certification : CE
    Price : Negotiation | 1 Unit/Units scrap copper wire stripping machine (Min
    Supply Ability : 8 sets in 30 days
    Delivery Time : 35 days
    • Product Details
    • Company Profile

    26D Horizontal Copper Wire Manufacturing Machine Inlet 0.95-1.65mm Outlet 0.1-0.4mm

    26D Horizontal fine range copper wire stripping machine Inlet 0.95-1.65mm Outlet 0.1-0.4mm


    machine type26D
    inlet diameter(mm)0.95--1.65
    outlet diameter(mm)0.1--0.4
    drawing line speed(MPM)2500
    drawing dies No./Max22
    slip ratio of m/c13%
    fix speed capstan slip ratio8%
    capstanceramic plasma
    capstan dia.(max.)(mm)φ242
    fix speed capstan dia.(mm)φ207
    frameironed cast
    main motor11KW three phase inductor motor
    spooler motor3.7KW three phase inductor motor
    revise systemDual inverter control
    inverter controlDual inverter control
    transmission typeflat belt
    payoff methodover head
    traversing unitflat belt + timing motor
    tension controlweightbalance by swing arm
    lubrication system of wire drawingspray
    suitable diameter of spool (mm)φ300
    capacity for wire receiving(kg)50-60
    bobbin loading & unloading typeshaft type
    power source380V/220/415/480
    brakepneumatic brake
    machine dimension2250L×1600W×1900H
    machine weight2200
