    DIN200 DIN1250 MS Metal Bobbin Wire Bunching Machine GB4004-83 JB/T8997.4-1999 DIN46395/DIN46397 Standard

    Ask Lasest Price
    Brand Name : NEWLEAD
    Model Number : DIN200/1250
    Price : Nnegotiation
    Certification : ISO
    Supply Ability : 100PCS IN 45 DAYS
    Delivery Time : 45 DAYS
    • Product Details
    • Company Profile

    DIN200 DIN1250 MS Metal Bobbin Wire Bunching Machine GB4004-83 JB/T8997.4-1999 DIN46395/DIN46397 Standard

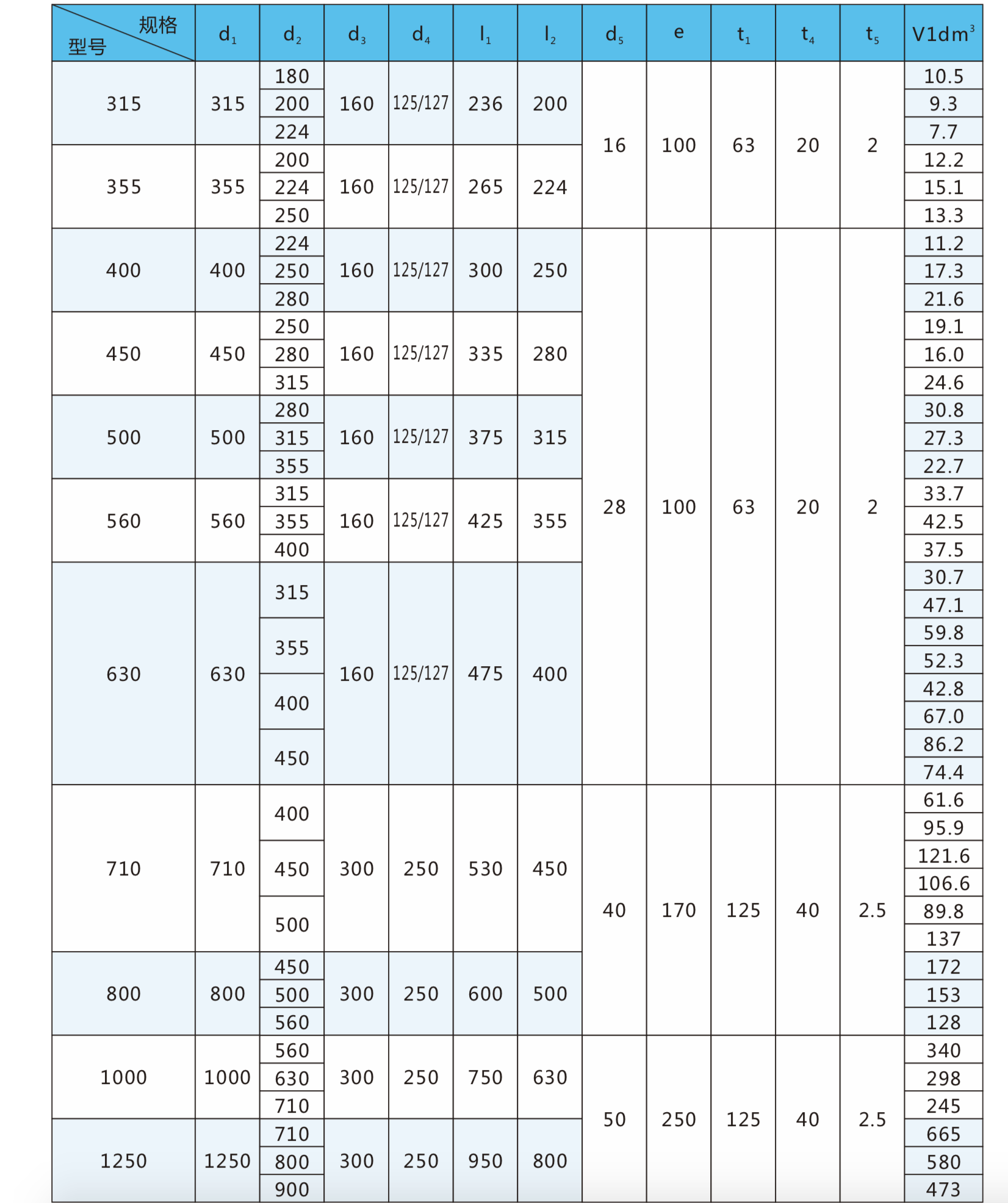

    DIN200 to DIN1250 MS Metal bobbin for Wire Bunching machine GB4004-83,JB/T8997.4-1999,DIN46395 /DIN46397 standard

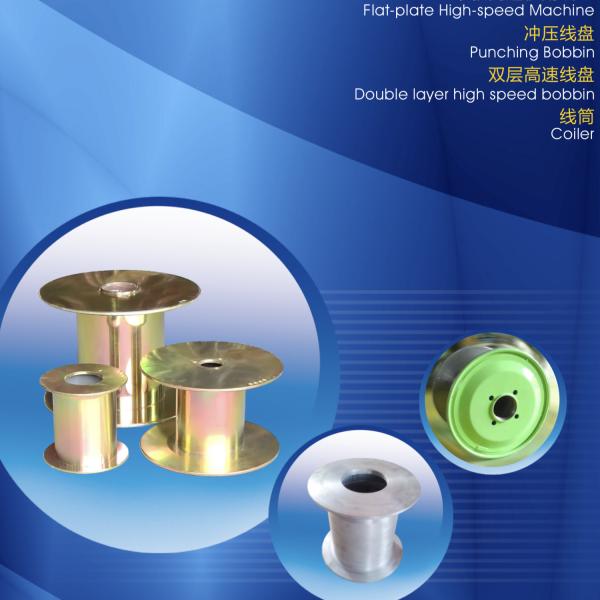

    Steel bobbin with massive flanges,
    barrel.bore and hub.Dimension
    either according to customer's specifications or
    GB4004-83,JB/T8997.4-1999,DIN46395 /DIN46397 standard.
    Dynamically balanced for speed from 25m/s to 50m/s.
    For cable,ferrous and non-ferrous wire.
    For drawing,stranding and bunching machines.




    Item2003004005006508001250
    Voltage380V (or according to customer’s requirement)
    Power5HP motor + 5HP inverter7.5HP motor+7.5HP inverters15HP motor+15HP inverter
    Twisting distance(mm)0.51-6.56

    1.52-16.73
    customized

    3.99-30.76
    customized

    4.96-39.94
    customized

    11.00-60.38
    customized

    21.52-145.66
    customized

    19.45-180.24
    customized

    Twisting directionFreedom of choice to left or right
    Take-up bobbinФ70-Ф200Ф200-Ф300Ф300-Ф400Ф400-Ф500Ф400-Ф650Ф630-Ф800Ф630-Ф1000
    Max speed(RPM)6000(or 5000)4000(or3000)3500(or3000)3000(or2200)2500(or1800)1500(or1200)1200(or1000)
    StrandingSuitable for above 7 extremely fine copper wire strandingSuitable for above 7 wire stranding: copper/silver/alloy/enameled/copper-clad aluminum/copper-clad steel/wick wire
    Stranding sec. Area(mm2)0.00178-0.0860.0137-0.4180.035-2.3880.035-3.0220.08-5.50.5-12.40.5-17.8
    Tension controlMagnetic particle automatic trackingManual adjustment or magnetic particle auto tracking
    Traversing unitFeed rod, traversing/distance adjustable
    BrakeElectromagnetic brake
    Cut wire controlIn or out cut wire auto brake
    Stranding OD(mm)0.018-0.0350.05-0.120.08-0.40.08-0.450.12-1.00.3-1.50.5-2.14
    Up and down axisManual take-upManual, electric oil-pressure or mechanical auto up and down
    Noise level(db)About 78dbAbout 78dbAbout 75dbAbout 78dbAbout 78dbAbout 78dbAbout 78db
    PaintApple green (or according to customer’s requirement)
    Dimension2100Lx800Wx900xH2300Lx900Wx1050xH2500Lx1200Wx1250xH2600Lx1300Wx1300xH3200Lx1300Wx1500xH3700Lx17000Wx1800xH4100Lx2000Wx2100xH
    OilingImport auto oiling system, auto enforce oilingManual or import auto oiling system, auto enforce oiling
