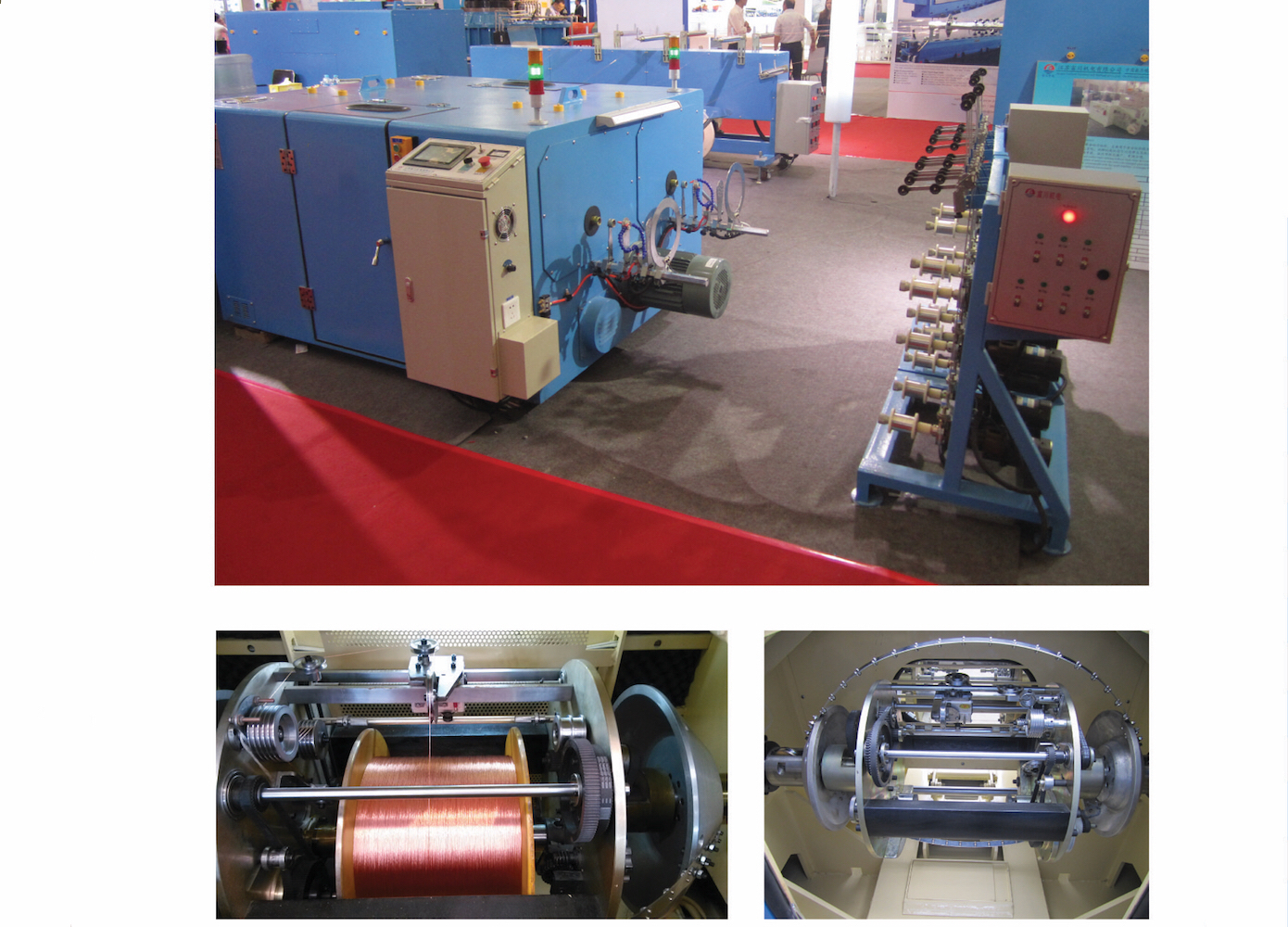

    Payoff Stand Wire Buncher Machine For PT5-PT15 Spool Super Fine Wire

    Ask Lasest Price
    Brand Name : Newlead
    Model Number : 180
    Price : Negotiation
    Certification : ISO CE
    Supply Ability : 100 lines in 30 days
    Delivery Time : 60 days
    • Product Details
    • Company Profile

    Payoff Stand Wire Buncher Machine For PT5-PT15 Spool Super Fine Wire

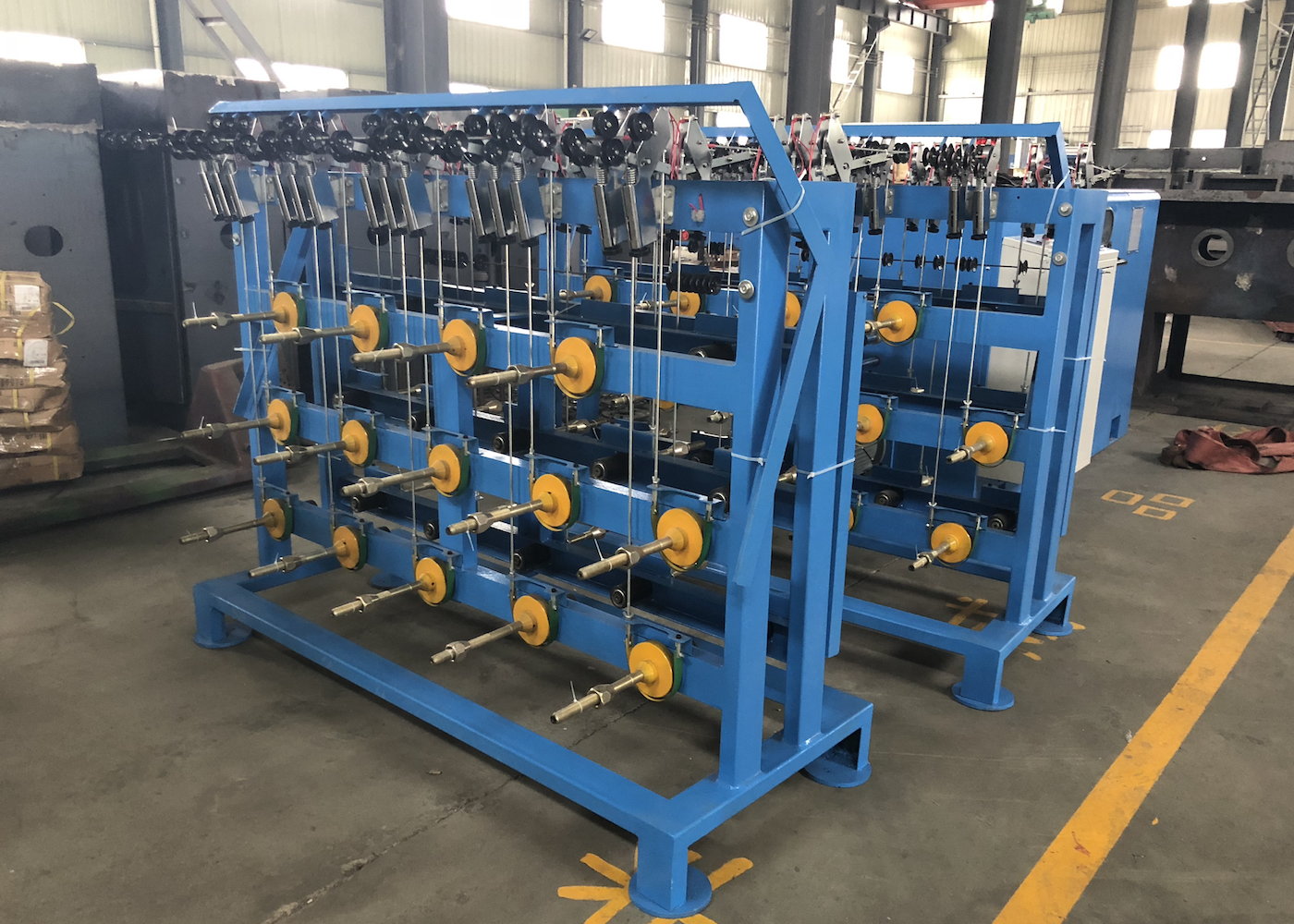

    Payoff stand for Wire Bunching machine suit for PT5-PT15 Spool super fine wire


    1:Horizontal type



    2.Motor drive

    Item200300400
    Voltage380V (or according to customer’s requirement)
    Power5HP motor + 5HP inverter7.5HP motor+7.5HP inverters
    Twisting distance(mm)0.51-6.56

    1.52-16.73

    customized

    3.99-30.76

    customized


    Twisting directionFreedom of choice to left or right
    Take-up bobbinФ70-Ф200Ф200-Ф300Ф300-Ф400
    Max speed(RPM)6000(or 5000)4000(or3000)3500(or3000)
    StrandingSuitable for above 7 extremely fine copper wire strandingSuitable for above 7 wire stranding: copper/silver/alloy/enameled/copper-clad aluminum/copper-clad steel/wick wire
    Stranding sec. Area(mm2)0.00178-0.0860.0137-0.4180.035-2.388
    Tension controlMagnetic particle automatic trackingManual adjustment or magnetic particle auto tracking
    Traversing unitFeed rod, traversing/distance adjustable
    BrakeElectromagnetic brake
    Cut wire controlIn or out cut wire auto brake
    Stranding OD(mm)0.018-0.0350.05-0.120.08-0.4
    Up and down axisManual take-upManual, electric oil-pressure or mechanical auto up and down
    Noise level(db)About 78dbAbout 78dbAbout 75db
    PaintApple green (or according to customer’s requirement)
    Dimension2100Lx800Wx900xH2300Lx900Wx1050xH2500Lx1200Wx1250xH
    OilingImport auto oiling system, auto enforce oilingManual or import auto oiling system, auto enforce oiling
