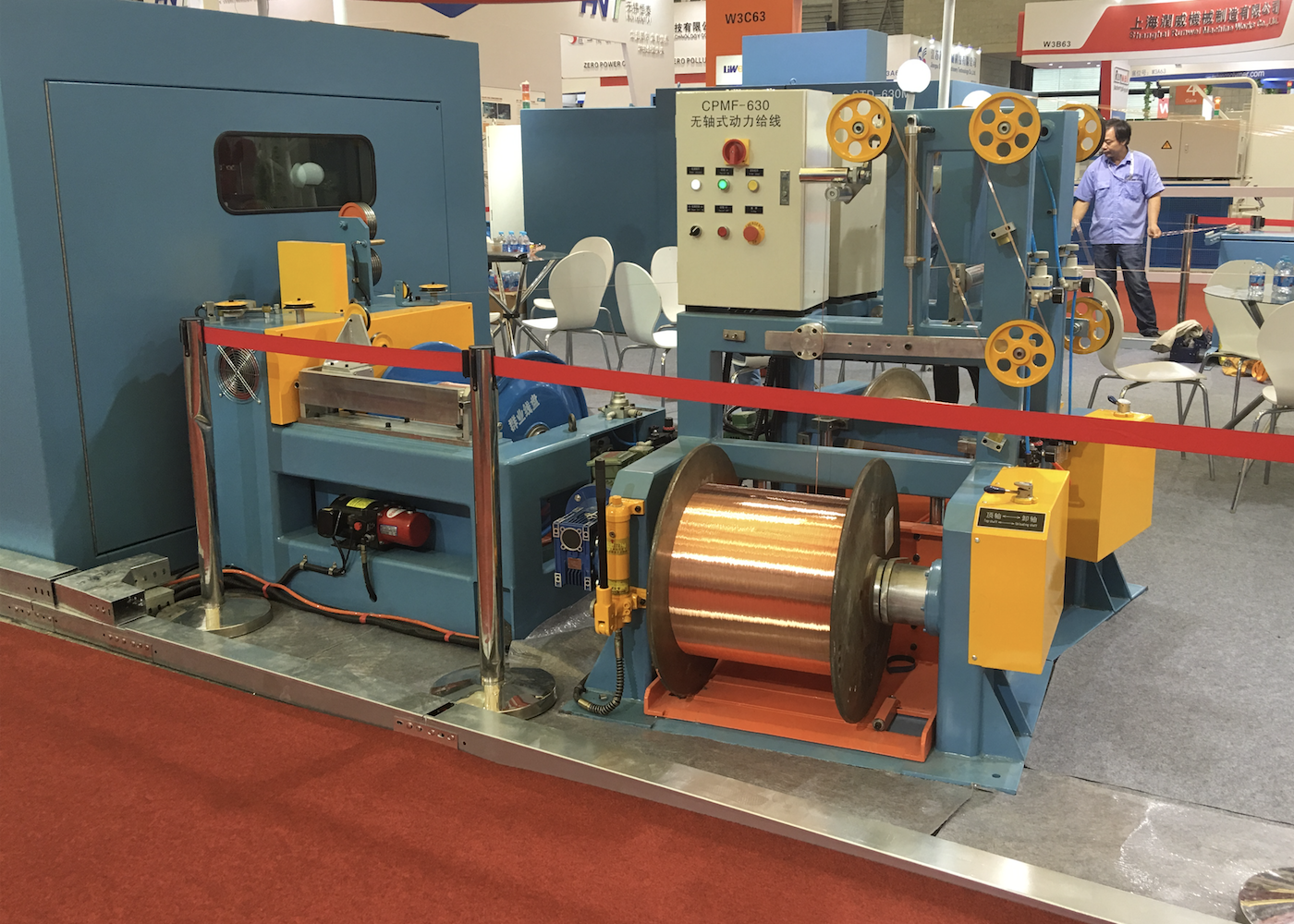

    Spool Loading Wire Bunching Machine With Pintle Pay - Off And Separate Drive

    Ask Lasest Price
    Brand Name : Newlead
    Model Number : 630/800
    Price : Negotiation
    Certification : ISO CE
    Supply Ability : 1 set in 60 days
    Delivery Time : 60 days
    • Product Details
    • Company Profile

    Spool Loading Wire Bunching Machine With Pintle Pay - Off And Separate Drive


    Design: Options:
    • pneumatically actuated pintle • weight-loaded dancer for wire bundle

    • •

    detection of single wire breaks for wire bundles
    pneumatic lifting table with central lift height adjustment

    crosssections from 0.07 ... 0.14 mm2change • traversing separating roll

    moveable plate for a simplified spool

    • easy lifting and lowering of the spool by a spool take-up cone

    Increase in quality:

    • twist free pay-off for single wires and wire bundles

    • constant wire tension through pneumatic dancer

    • • wire break control

    • Energy and cost efficiency:

    • basic design allows several layouts of loading and operator side
      spool loading without any auxiliary device

      Increase in productivity:
      • quick spool change via pneumatically actuated pintle

      • simple change of spool type by means of

      a central adjustment of the lifting table

      • automatic drive pin sensing device

      Item6508001250
      Voltage380V (or according to customer’s requirement)
      Power5HP motor + 5HP inverter7.5HP motor+7.5HP inverters15HP motor+15HP inverter
      Twisting distance(mm)

      customized

      11.00-60.38
      customized

      21.52-145.66
      customized

      19.45-180.24
      customized

      Twisting directionFreedom of choice to left or right
      Take-up bobbinФ400-Ф650Ф630-Ф800Ф630-Ф1000
      Max speed(RPM)2500(or1800)1500(or1200)1200(or1000)
      StrandingSuitable for above 7 wire stranding: copper/silver/alloy/enameled/copper-clad aluminum/copper-clad steel/wick wire
      Stranding sec. Area(mm2)0.08-5.50.5-12.40.5-17.8
      Tension controlManual adjustment or magnetic particle auto tracking
      Traversing unitFeed rod, traversing/distance adjustable
      BrakeElectromagnetic brake
      Cut wire controlIn or out cut wire auto brake
      Stranding OD(mm)0.12-1.00.3-1.50.5-2.14
      Up and down axisManual, electric oil-pressure or mechanical auto up and down
      Noise level(db)About 78dbAbout 78dbAbout 78db
      PaintApple green (or according to customer’s requirement)
      Dimension3200Lx1300Wx1500xH3700Lx17000Wx1800xH4100Lx2000Wx2100xH
      OilingManual or import auto oiling system, auto enforce oiling
