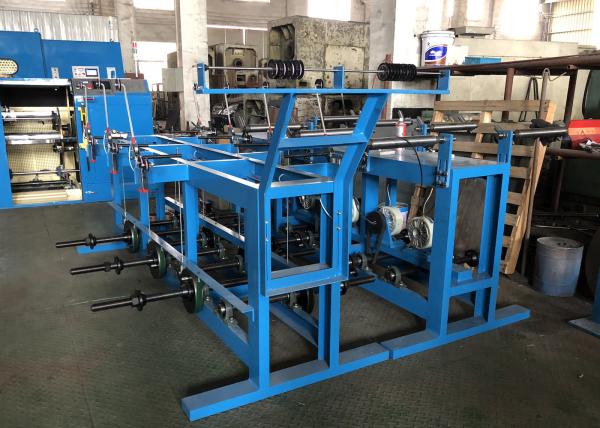

    0.3-1.7mm Wire Magnetic Cable Buncher , Horizontal Double Twist Buncher

    Ask Lasest Price
    Brand Name : Newlead
    Model Number : PND500/630
    Price : Negotiation
    Certification : ISO CE
    Supply Ability : 38 sets in 60 days
    Delivery Time : 60 days
    • Product Details
    • Company Profile

    0.3-1.7mm Wire Magnetic Cable Buncher , Horizontal Double Twist Buncher


    0.3-1.7mm wire magnetic powder payoff payoff stand for wire bunching machine PND500 to PND630


    1.magnetic powder payoff




    Itemm650800
    Voltage380V (or according to customer’s requirement)
    Power15HP motor+15HP inverter
    Twisting distance(mm)

    11.00-60.38

    customized

    21.52-145.66

    customized


    Twisting directionFreedom of choice to left or right
    Take-up bobbinФ400-Ф650Ф630-Ф800
    Max speed(RPM)2500(or1800)1500(or1200)
    StrandingSuitable for above 7 wire stranding: copper/silver/alloy/enameled/copper-clad aluminum/copper-clad steel/wick wire
    Stranding sec. Area(mm2)0.08-5.50.5-12.4
    Tension controlManual adjustment or magnetic particle auto tracking
    Traversing unitFeed rod, traversing/distance adjustable
    BrakeElectromagnetic brake
    Cut wire controlIn or out cut wire auto brake
    Stranding OD(mm)0.12-1.00.3-1.5
    Up and down axisManual, electric oil-pressure or mechanical auto up and down
    Noise level(db)About 78dbAbout 78db
    PaintApple green (or according to customer’s requirement)
    Dimension3200Lx1300Wx1500xH3700Lx17000Wx1800xH
    OilingImport auto oiling system, auto enforce oilingManual or import auto oiling system, auto enforce oiling
