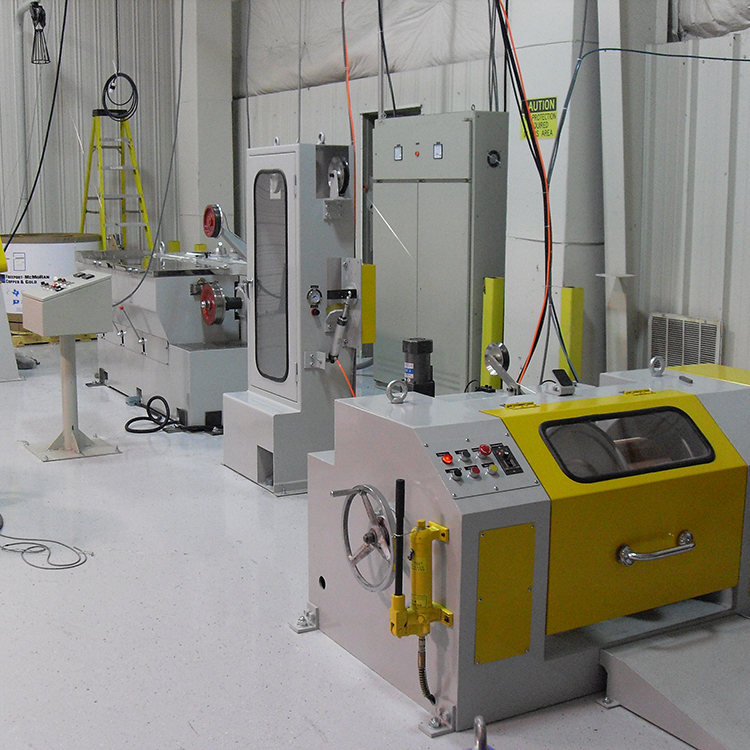

    17DS Copper Wire Drawing Machine For Hard Wire Medium Wire Range With High Precision Gear

    Ask Lasest Price
    Brand Name : RBO
    Model Number : 17DS
    Certification : CE
    Price : Negotiation | 1 Unit/Units copper wire drawing machine (Min. Order)
    Supply Ability : 10 sets in 70 days
    Delivery Time : 60 days
    • Product Details
    • Company Profile

    17DS Copper Wire Drawing Machine For Hard Wire Medium Wire Range With High Precision Gear

    17DS Intermediate copper wire drawing machine for hard wire medium wire range


    Design:

    • optimum wire cooling/lubrication by fully submerged drawing basin

    • extremely smooth operation and uniform load transmission by helical precision gear

    • highly reliable separation of drawing emulsion and gear oil via mechanical seal (long service intervals)

    • user-friendly design

      Increase in quality:

      • straight wire path caused by staggered cone pairs (very high wire surface quality)


    machine type


    17DS

    inlet diameter(mm)


    φ2.5-φ3.5

    outlet diameter(mm)


    φ0.4-φ1.6/1.8/2.0 options

    drawing line speed(MPM)


    1800

    drawing dies No./Max


    17

    slip ratio of m/c


    20%

    fix speed capstan slip ratio


    15%

    capstan


    capstan dia.(max.)(mm)


    φ250

    fix speed capstan(mm)


    φ250

    frame


    ironed cast

    main motor


    55KW three phase inductor motor

    spooler motor


    15KW three phase inductor motor

    revise system

    PID synchronous spooler

    inverter control

    Dual inverter control

    transmission type

    transmits by high precision gear

    payoff method

    over head

    traversing unit

    flat belt + timing motor

    rension control

    pneumatic balance by swing arm

    lubrication system of wire drawing


    all immerse type

    suitable diameter of spool(mm)


    500mm 630mm

    capacity for wire receiving(kg)


    100-400

    bobbin loading & unloading type

    shaft type

    brake

    pneumatic brake

    machine dimension


    2100L×1022W×995H

    machine weight


    5100
