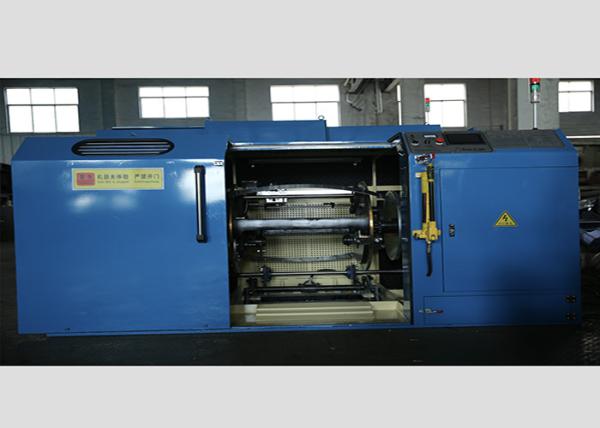

1000DTB Wire Bunching machine twisting of aerospace, medical equipment, cellphone, notebook computer and ultra conductor

The technical specification of 1000B bunching machine

Advantages:

1. High speed and stability,(the motor connected directly with the drive shaft through the steel coupling)
2. Automatic tension control: when twisting,the tension need to increasing contiuously with the reel to the full plate from classis,(the data set by touch screen). This machine can automatically track the adjustment up tension to make the tension of whole plate uniform,it can adjust the tension through the touch screen.
3. Wire-pass system:using the latest structure,the wire pass directly to the bow-band from main spindle.the bow designed with a unique semi-circular groove design to match the bow with semi-circular ceramic magnetic ring to pass the wire,which avoids stranding scratches and jump wire due to high speed drag.

4. Main spindle lubrication:butter sealed lubricating.

5. Safety protection:when the contacts of the start gate and lifts are not in the place and both inside and outside broken,the machine will alarm automatically through touch screen or stop operation.

6. Main spindle and rotary arm:box and rotary are he split type,the noise below80d.

7. Electrical control:PLC and frequency converter,touch human-machine interface,simple operation.

8. The high quality bow of SK5 is imported from Japan,heat treatment and surface hard chrome plating.

9. Drive system:the machine adopts synchronous belt to drive,accuracy twist pitch,machine without lubrication points,the machine will be clean avoid the gas pollution arising the low quality wires and waste wires.

10. Change pitch:easy operation and only need to replace the capstan wheel based on the correspondence twist pitch list.

11. Pressing device:machine provided with two pressing devices,ensure the conductors twisted round,thin walled insulated wire for security product characteristics,reducing the loss of insulating material.

12. Meter :the latest design,the main spindle to meter,the one machine twist the same sort of conductors.meter error1/10000

Facts and figures

PRO-NEWLEAD including two branches ,one is RBO to produce drawing,bunching and coiling, second in Guanzhong to produce enameling,metal bobbin and spare parts.

More than 30 years of top-quality technology for the wire and cable industry

one of the world’s leading manufacturers of wire-drawing , annealing, galvanic electroplating, bunching, take-up, rewinding, coiling and enameling of wire made of non-ferrous metals. machinery for the stranding, coiling and take-up of insulated data cables and special cables, automotive cables and power cables; the development, planning and turnkey delivery of fully-fitted cable factories; global service.

NEWLEAD has played a major role in the EXPORT of the wire and cable industry throughout its existence. And goal service engineers to do commissioning for our clients.We develop, build and plan innovative technologies at the heart of the wire ＆cableindustry. Competence, fairness and reliability are just some of the values that make the difference for customers in more than 30 different countries
Facts and figures about NEWLEAD
Core industries:
Wire industry and cable industry with a focus on the automotive, aviation and aerospace, electronics, telecommunications and transport industries
Core business:
Manufacture of lines and machinery for the drawing, annealing, galvanic electroplating, bunching, take-up, rewinding, coiling and enameling of wire made of non-ferrous metals; machinery for the stranding, coiling and take-up of insulated data cables and special cables, automotive cables and power cables; the development, planning and turnkey delivery of fully-fitted cable factories; global service.
Turnover 2015/2016: USD 2000000.00
Number of employees: 120
Number of trainees: 13
Number of employees plant 1: 80
Number of employees plant 2: 30

Number of employees plant 3: 10
Locations:Suzhou,Changzhou,Wuxi
Export ratio: > 35%
