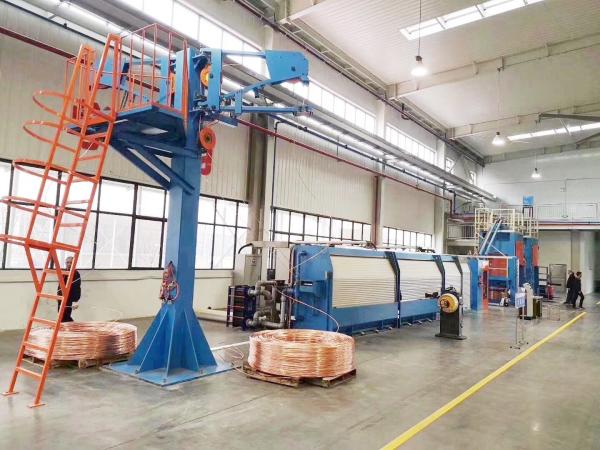

Dual wires copper rod breakdown machine with two set down coiler or
double spooler and online annealing options
Advantages of this safe investment choice
Increase in quality:
High surface quality of the wires due to the optimized wire path
(2° inclination of the gearing/drawing capstans) innovative drawing
die holders with high-pressure cooling of the drawing dies
Increase in productivity:
Reduced downtime when changing the machine setup for different
dimensions via multi-SERVO motor drive technology (quick drawing
die change system)
Reduced downtime due to touch screen-
Based user guidance and fault display
Cost-effectiveness:
Reduced tool consumption (drawing capstans, drawing dies) with
minimized-slip operation
energy savings of up to 20% are achieved
by switching off unused drives long service intervals and extended
drawing tool service life minimize the requirement to stock and use
spare parts
Reduced consumption of oil and drawing lubricant
Design:
Optimized wire cooling/lubrication (due to the fully-immersed
drawing basin) flexible adjustment of the wire elongation per draft
Individually driven drawing shafts in horizontal tandem layout
three-phase AC drives, water-cooled and maintenance-free
Ergonomic and user-friendly machine design, with easy maintenance
no noise protection cabin required up to 85 dB (A)
helically geared
precision gearing for extremely smooth operation and uniform load
transmission vibration-damping grey cast iron housing for long
service life
Highly reliable separation of drawing emulsion and gear oil via
mechanical seal (long service intervals)
2,TECHNICAL PARAMETER
| 2.1 | Inlet wire | Φ8.0mm |
| 2.2 | Outlet wire | Φ1.2－Φ4.0mm |
| 2.3 | Max speed of drawing | 25m/s |
| 2.4 | Drawing block size | Φ450mm |
| 2.5 | Max number of passes | 13 |
| 2.6 | Die dimension | Φ38x25 |
| 2.7 | Capacity of the accumulator | 7m |
| 2.8 | Double Spooler bobbin size | PND630 |
| | |
| 2.9 | Main motor power | 37kW (AC) X5, 30kWX7(AC) |
| 2.10 | Power of motor for constantspeed wheel | 55kW (AC) |
| 2.11 | Power of motor for spooler | 18.5kW×2 (AC) |
| 2.12 | Installation size | 36000×4200×5000mm |
| 2.13. | Down Coiler | Φ800mm |
| 2.14. | Annealer power | 55V,6000A (DC) |
3, MACHINE COMPONENTS
| 3.1 | Cantilever payoff stand | 1set |
| 3.2 | Main drawing machine | 1set |
| 3.3 | Continuous annealing device | 1set |
| 3.4 | Dancer | 1set |
| 3.5 | PND630 Automatic spooler | 1set |
| 3.6 | Pointing machine | 1set |
| 3.7. | Φ900 Down Coiler | 1set |
| 3.8 | Drawing emulsion system | 1set |
| 3.9 | Electric cabinet and control desk | 1set |
Others
1. Paint:Paint after rustproof production according to our
standards or customer’s requirements
2. The consumables:Capstan; Distributing guide pulleys; Traversing
guide pulleys; Flat belts
3. The period of guarantee:
12 months for mechanical part (excluding the consumables) after the
shipment;
6 months for electrical parts after the shipment
Permanent maintenances (charge)
4. Commission:
A. Idle-running test will be carried out at our plant with no rough
material fed. An acceptance test will be carried out with rough
material fed at buyer's request.
B. Running-test is carried out at buyers' plant, all of the charge
for the testers including flight ticket, traffic, salary,
accommodation outside makers' plant shall be paid by the
buyer.(USD80/DAY)
C. The buyer supplies all the material for the test, such as
Bobbin(Drum), gear oil, Lubricant oil, Dies, Butt welder, Raw
Material, Air compressor, test equipment ,etc. are excluded.
5. Maintenance: we offer long-distance mechanical support for free;
If the engineers are needed to be the buyer’s company for
maintenance, the buyer offers flight ticket (SHANGHAI), board and
lodging.(USD 100 /day, per engineer)
6.Standard export packing for shipping
SPECAIL STATEMENT
All information above are carefully checked, our company reserve
explain right if any printing mistake or any misunderstanding.
Another: Sorry for noting no advanced notice for the techniques
improvement or upgrade on the machine; any change on the appearance
or color, please refer to the real object.
