cable winding and packing tie labeling solutions automatic cable
coiling machine
Cable automatic winding
Cable automatic winding and tie(Bundle)
Cable automatic winding,tie,film packing and labeling
1:PN630 Bobbin motor drive payoff
1.1 4KW motor
1.2 Bobbin PN630
2.Tension controller

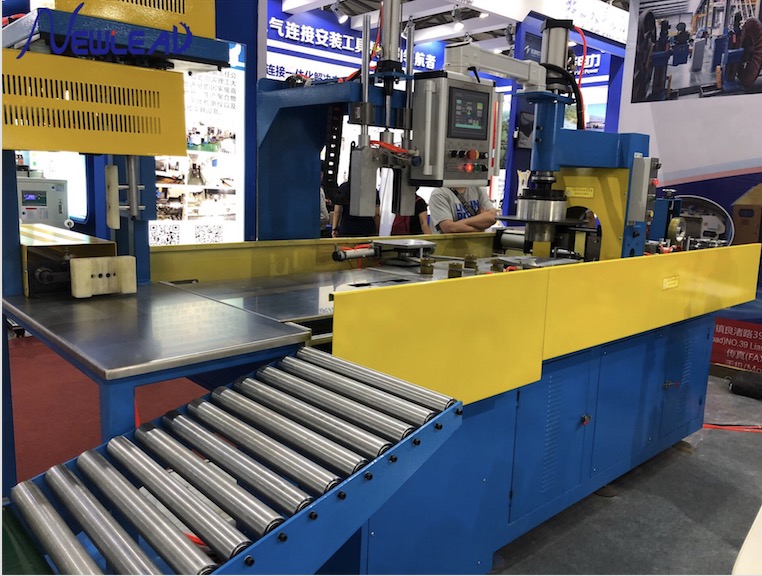

3.Computerized Automatic Coiling Machine+ Automatic binding machine
(2 points)
Specification:
1). Power: AC 380V, three-phase, 50HZ (China), or to be designated
by the customer.
2). Operating direction: right-hand machine (incoming line from the
left-hand direction) or to be designated by the customer.
3). Applicable cable types: φ1-φ8MM electronic cords, computer
cords, electric cords, BV/AV power lines, and building lines.
4). Design speed of the work head: 780 RPM/MAX.
5). Wire coil dimension: Outside diameter Φ240mm Max ,height
50-120MM;the inside diameter of wire coil is determined by the work
head specification, and its scope of specification is: φ125MM
(fixed dimension),the patterns are to be selected by the customers.
Special designs should be made for the dimensions beyond the scope
of specification, and it is up to our company to decide their
feasibilities.
1. Equipment composition
| No. | Description | Quantity | Remark |
| 1 | Φ300 Tension Control Frame | 1 pc | |
| 2 | Computerized Automatic winding Machine | 1 pc | |
| 3 | Automatic tie (bundle)machine (2 points) | 1 pc | |
| 4 | Motorized belt | 1 pc | |
| | | |
| 5 | Coating: A. RAL5015 B. RAL7035 C. RAL6017 D.RAL5023 E.or supplied
by customer |
| 6 | Production-line direction: from left to right; from right to left |
| 7 | Mounted length of the whole production line can be seen in the
installation schematic |
1). Power: AC 380V, three-phase, 50HZ (China), or to be designated
by the customer.
2). Operating direction: right-hand machine (incoming line from the
left-hand direction) or to be designated by the customer.
3). Applicable cable types: φ1-φ8MM electronic cords, computer
cords, electric cords, BV/AV power lines, and building lines.
4). Design speed of the work head: 780 RPM/MAX.
5). Wire coil dimension: Outside diameter Φ240mm Max ,height
50-120MM;the inside diameter of wire coil is determined by the work
head specification, and its scope of specification is: φ125MM
(fixed dimension),the patterns are to be selected by the customers.
Special designs should be made for the dimensions beyond the scope
of specification, and it is up to our company to decide their
feasibilities.
