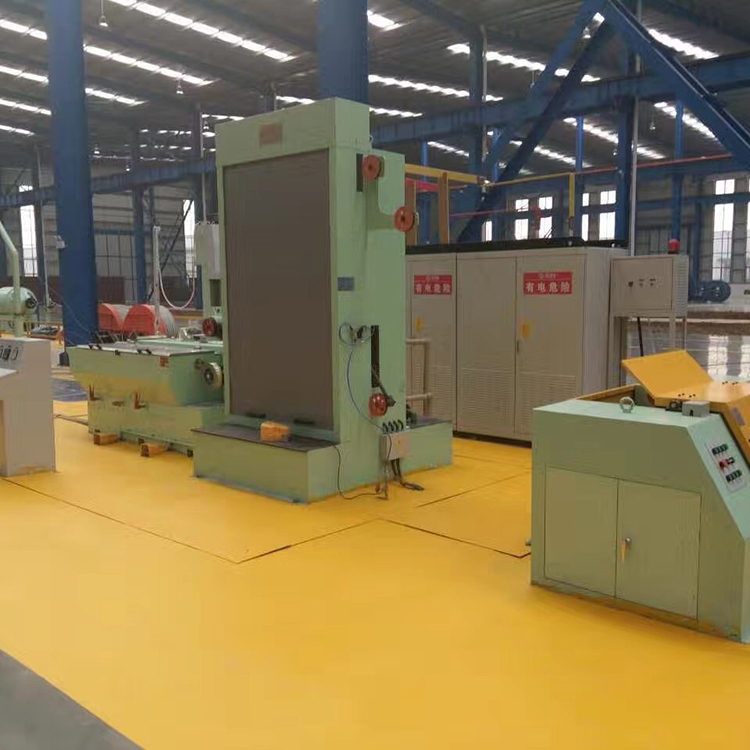

17IWDA Intermediate wire drawing machine with annealing

1,Main technique parameter:

1.Usage: Bare copper wire drawing

2. Inlet diameter: Ф3.5mm-Ф2.5mm

3. Outlet diameter: Ф1.6mm-Ф0.4mm

4. Maximum mechanical speed: 1800M/MAX (1500M/MAX with annealing)

5. Drawing speed: Only for reference

6. Dies

Number: 17 dies (Customer self provided); Ф30mm-15mmT or Ф25mm-10mmT

The last die: Ф25mm-10mmT

Pedestal can be adjusted according to the capstan

7. Mechanism surface reduce rate:

From No.1 to No.16 20%

No.17 15.5%

8 Drawing lubrication: Fully immersing type

9. Drawing method: 4 shafts horizontal arrangement

10. Lubrication oil requirement: 100 liter/min

11. Drive motor: 75HP (55KW) induction motor

12. Spooler motor: 20HP (15KW) induction motor

13. Annealer: Maximum output power:

120KVA

14. Traversing: Traversed by 90W motor with position-limited switch

15. Safety door: Turn upward

2,Elements list

1. Pay-off stands 1 set

2. Main drawing machine 1 set

3. Annealer 1 set

3. Pneumatic tension controller 1 set

4. Take up machine without shaft 1 set

5. Electrical control cabinet 2 set

6. Console 1 set

Dual lines intermediate wire drawing machine with annealer and double PND630 take up copper wire drawing machine

Main technique parameter:

1． Usage: Bare copper wire drawing

2. Inlet diameter: Ф3.5mm-Ф2.5mm*2

3. Outlet diameter: Ф1.6mm-Ф0.4mm*2

4. Maximum mechanical speed: 1800M/MAX (1500M/MAX with annealing)

5. Drawing speed: Only for reference

6. Dies

Number: 17 dies (Customer self provided); Ф30mm-15mmT or Ф25mm-10mmT

The last die: Ф25mm-10mmT

Pedestal can be adjusted according to the capstan

7. Mechanism surface reduce rate:

From No.1 to No.16 20%

No.17 17%

8 Drawing lubrication: Fully immersing type

9. Drawing method: 4 shafts horizontal arrangement

10. Lubrication oil requirement: 100 liter/min

11. Drive motor: 75KW AC motor

12. Spooler motor: 15KW*2 AC motor

13. Annealer: Maximum output power: DC 60V,3000A

14. Traversing: Traversed by 90W*2 motor with position-limited switch

15. Safety door: Turn upward

二,Elements list

1. Pay-off stands*2 ................................1 set

2. 2 wires Main drawing machine ..........1 set

3. 2 wires Annealer .................................1 set

4. Take up machine with dancer.........2 set

5. Electrical control cabinet ............................2 set

6. Console............................................1 set

Equipment technical standards

1. 2 lines Main drawing machine:

1-1. Frame: Cast in iron; treated by annealing and abrasive blasting

1-2. Transmission: Transmission by gear

1-3. Capstan:

4-tier unity capstan*2

5 capstans in total; 4 capstans are same and exchangeable; the last capstan is independent

The surface of capstans are treated with tungsten carbide

1-4. Oil pipe of drawing: There are pipes are set up above the dies and capstans for cooling and lubrication; the capstans are totally immersed in drawing oil when machine is running.

1-5. Lubrication for machinery:

Spray lubrication for gears and bearings;

There is a visible spot on the mechanical lubrication oil box for oil inspecting.

1-6. Drive motor:75KW 4P 380V 50HZ AC motor;Transmission by C# triangle belt;

1-7. A manual pointing and threading unit is used to make the wire go through easily

1-8. Manual pointing and threading unit makes it easy to get wire through.

Others

1. Paint:Paint after rustproof production according to our standards or paint according to buyer’s requirements

2. The consumables:Capstan (6 months of guarantee);Distributing guide pulleys; Traversing guide pulleys; Flat belts

3. The period of guarantee:12 months for mechanical part (excluding the consumables) after the shipment;6 months for electrical parts after the shipment.Permanent maintenance (charge)

4. Test:

A. Employees form both of the company do the test together in our Company after the finish of the order;

B. If it is necessary, our staffs do the test in buyer’s company, the buyer offers flight ticket, board and lodging (USD80/DAY)

C. The buyer supplies all the material for the test

5. Maintenance: We offers long-distance mechanical support for free; if the engineers are needed to be in the buyer’s company for maintenance, the buyer offers flight ticket (SHANGHAI), board and lodging. (80USD/DAY)

6. Wooden pallets packing for shipping

SPECAIL STATEMENT

All information above are carefully checked, our company reserve explain right if any printing mistake or any misunderstanding.

Another: Sorry for noting no advanced notice for the techniques improvement or upgrade on the machine; Any change on the appearance or color, please refer to the real object.
