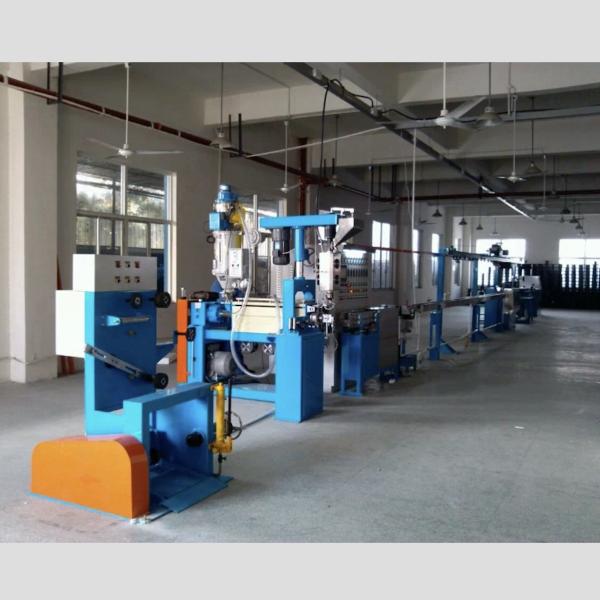

    120m/M 45mm Fluoroplastic Cable Extruder


    45mm Advanced Production line of fluoroplastic cable extruder


    Application scope:

    It is suitable for the production of FEP (polyfluoroethylene propylene, also known as F46), PFA (fluorinated alkoxyethylene resin) and ETFE (polytetrafluoroethylene and ethylene copolymer, also known as F40) and other heat-resistant and corrosion-resistant wire insulation and sheath. It is especially suitable for coating cables used in aerospace, nuclear submarine and other special industries.

    1. Equipment configuration:
    NoNameQTY
    1PN400-500 motorized payoff1sets
    2PN800 magnetic powder payoff
    3Straightening table 50mm1 set
    4Ψ45/25 extruder1 set
    5Cabinet PLC type∕operating desk1 set
    6U7 head self-type center1 set
    7U7 Manual centering crosshead1 set
    8Primary-secondary moving water trough(2m)1 set
    98.5M Main cooling water tank1 set
    1012m Horizontal type storage accumulator2 sets
    11Ψ500+500mm Double round capstan tractor1 set
    12Caterpillar-tractor 500kg1 set
    13PN400-630Dual take up1 set
    14PN800 Torque take up1 set
    15Online diameter control1 set
    1615kv AC Spark Tester1 set
    17Strip-injecting machine Φ35*181 set
    18Copper wire pre-heat 22501 set
    19Free spare parts1 set
    20Layout 23-25m


    General technical specifications:

    1. Applicable conductor core wire diameter: Φ 0.2mm - Φ 6.0mm

    2. Finished outer diameter: Φ 0.4mm - Φ 8.0mm

    3. Minimum insulation thickness: 0.2mm

    4. Output: 25kg / HR (head opening, FEP, PFA, ETFE)

    5. Maximum outlet speed: 12-120m / min (depending on the finished outer diameter)

    6. Machine center height: 1000mm
